G4 Luggage Rack (2021)

Step	Description	Image

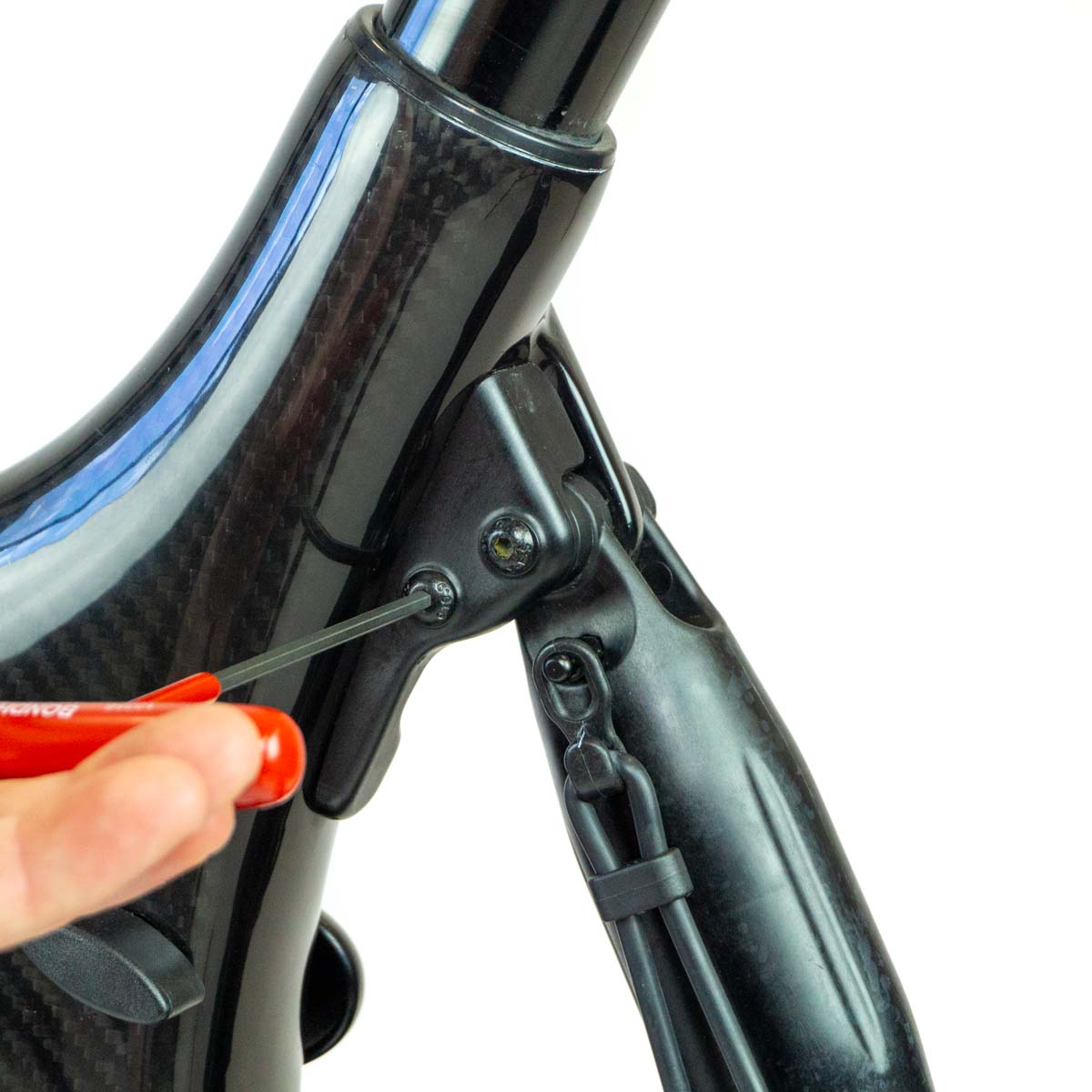

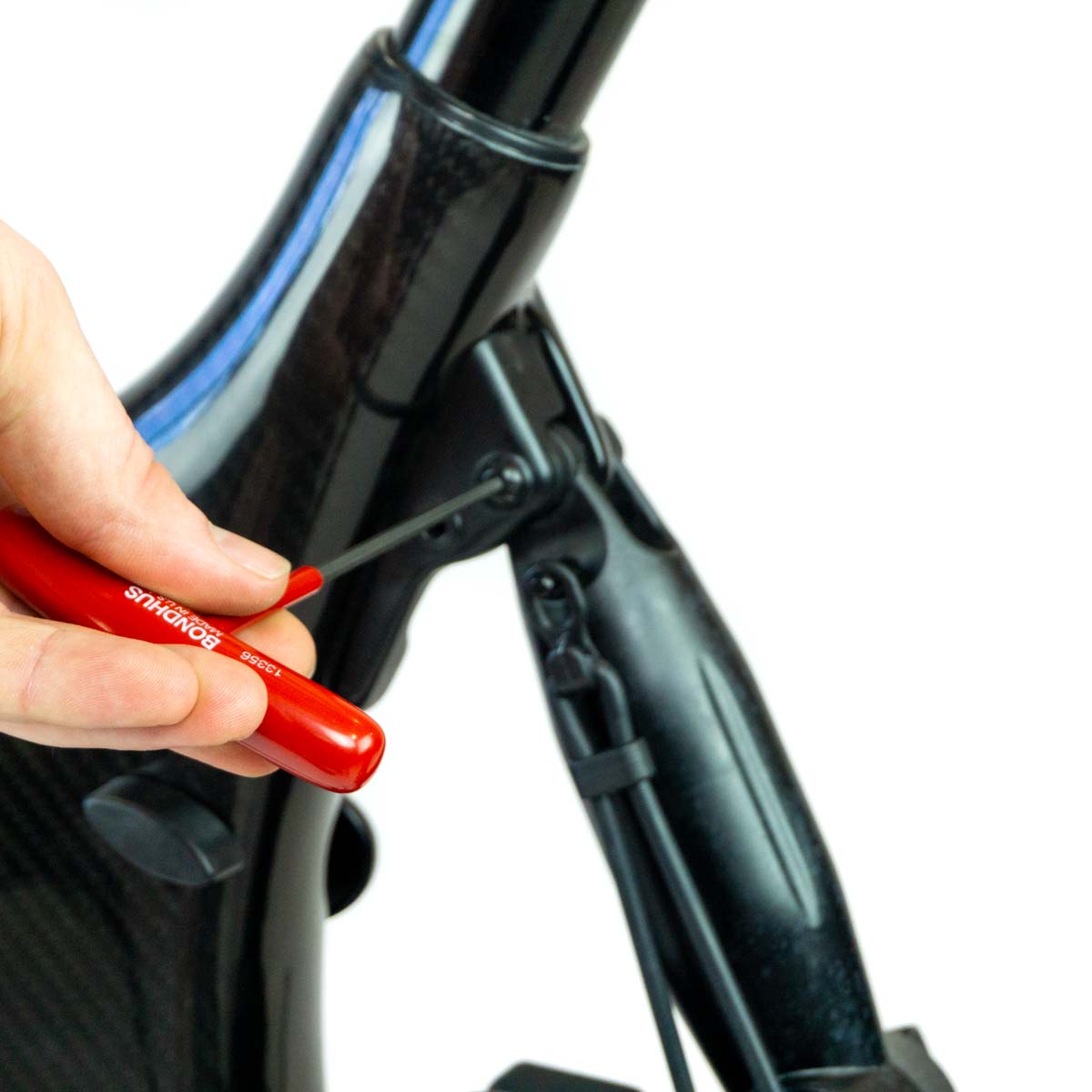

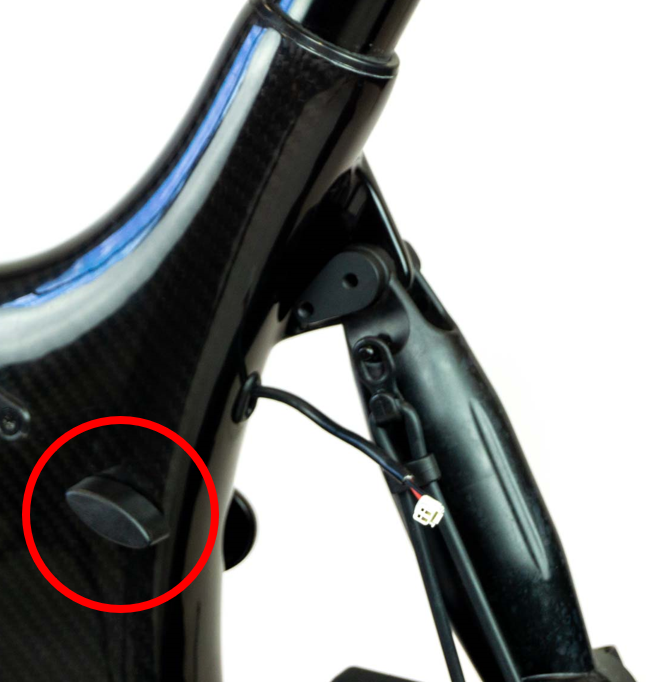

1.	Use a 3mm hex key to remove the two screws from the rear light cable cover.

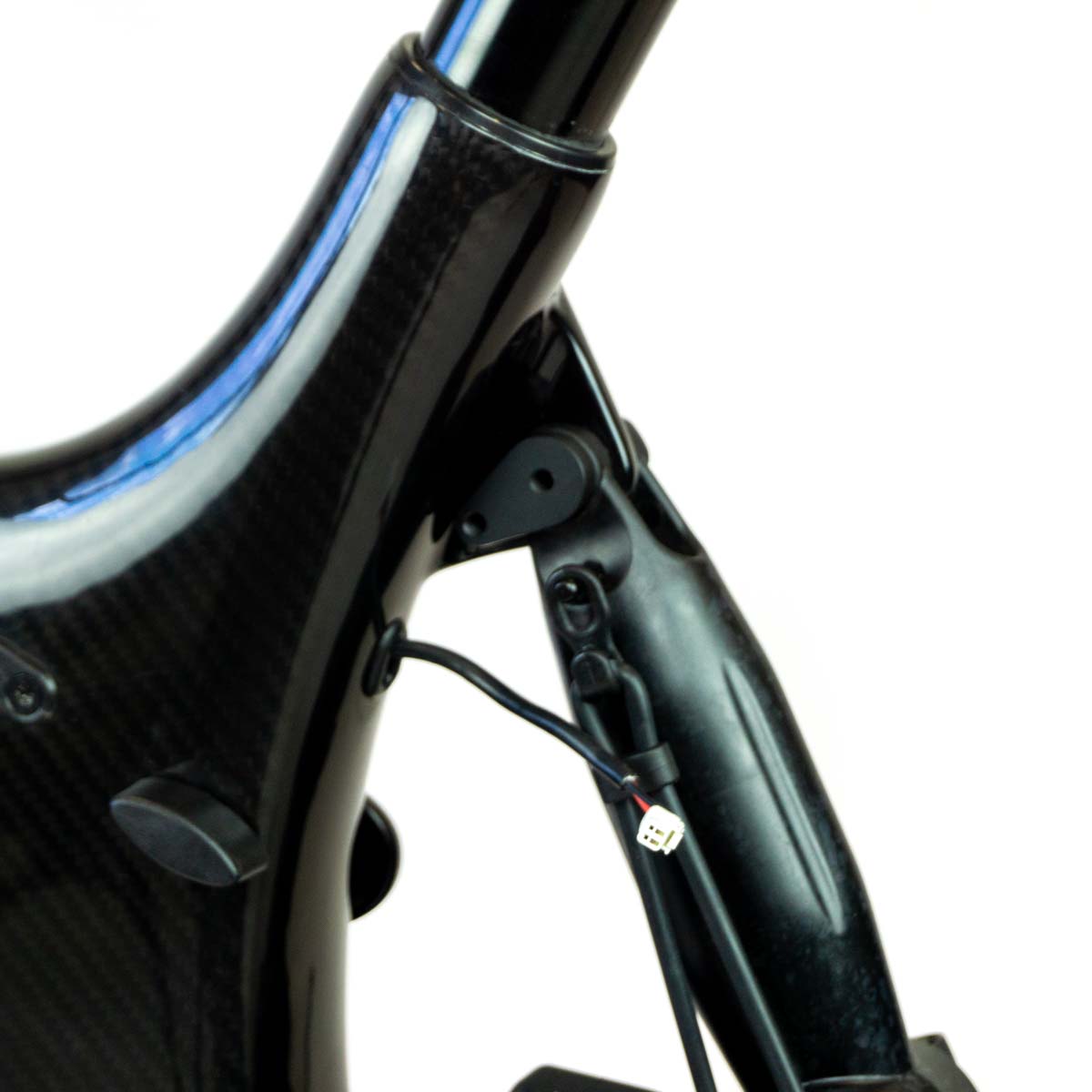

2.	Remove the rear light cable cover from the bike and the cable.

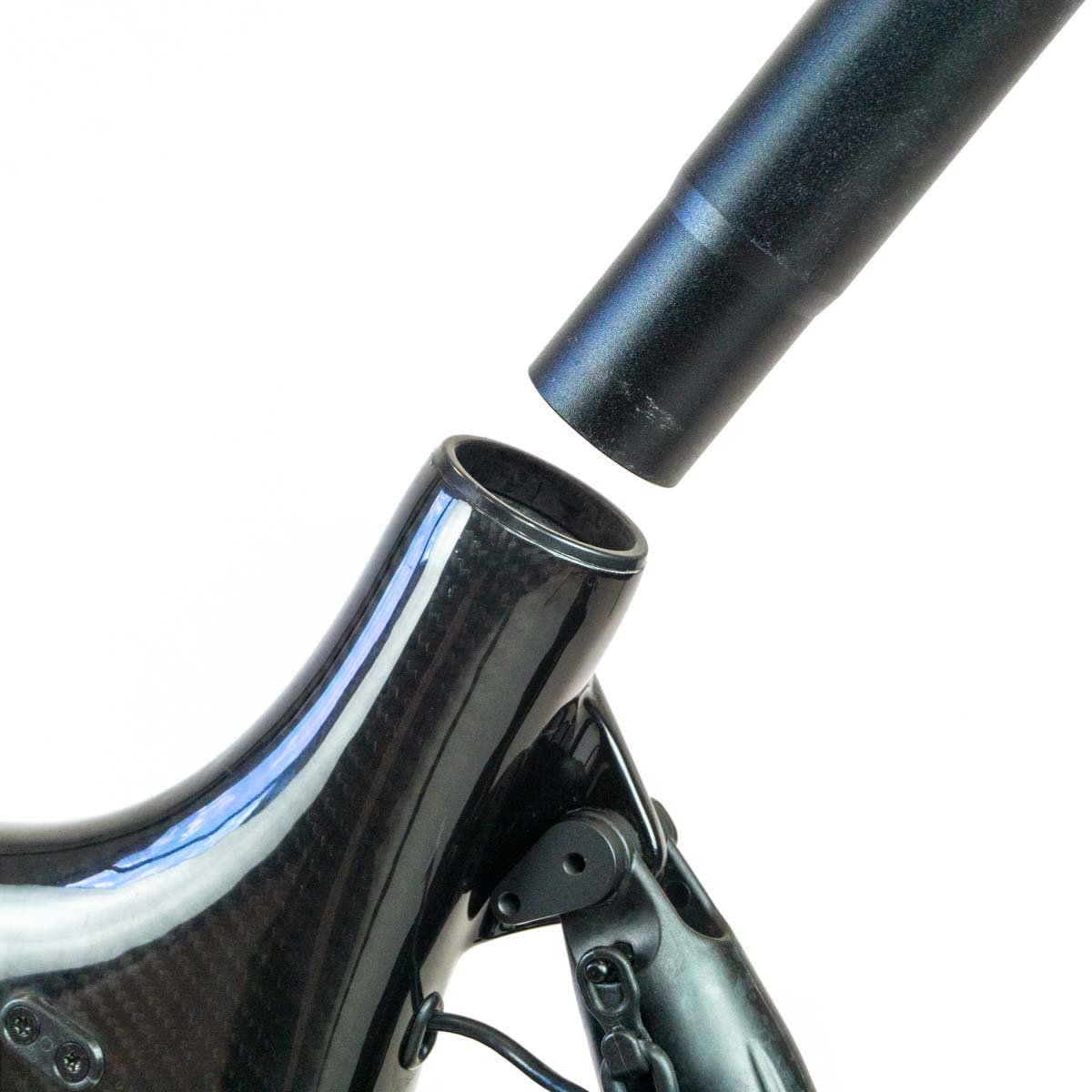

3.	Remove the seat post from the Gocycle.

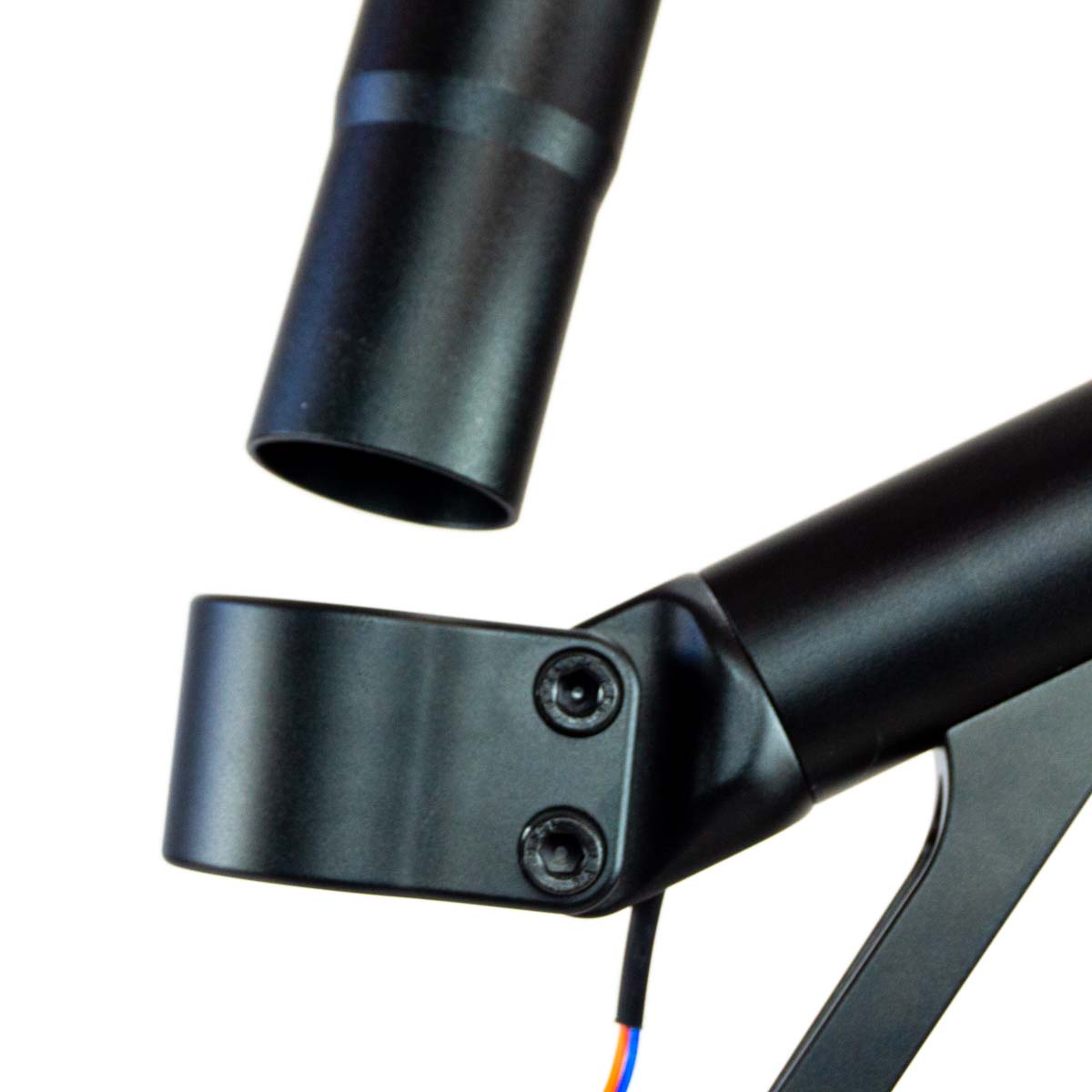

4.	Insert the seat post into the luggage rack seat post clamp

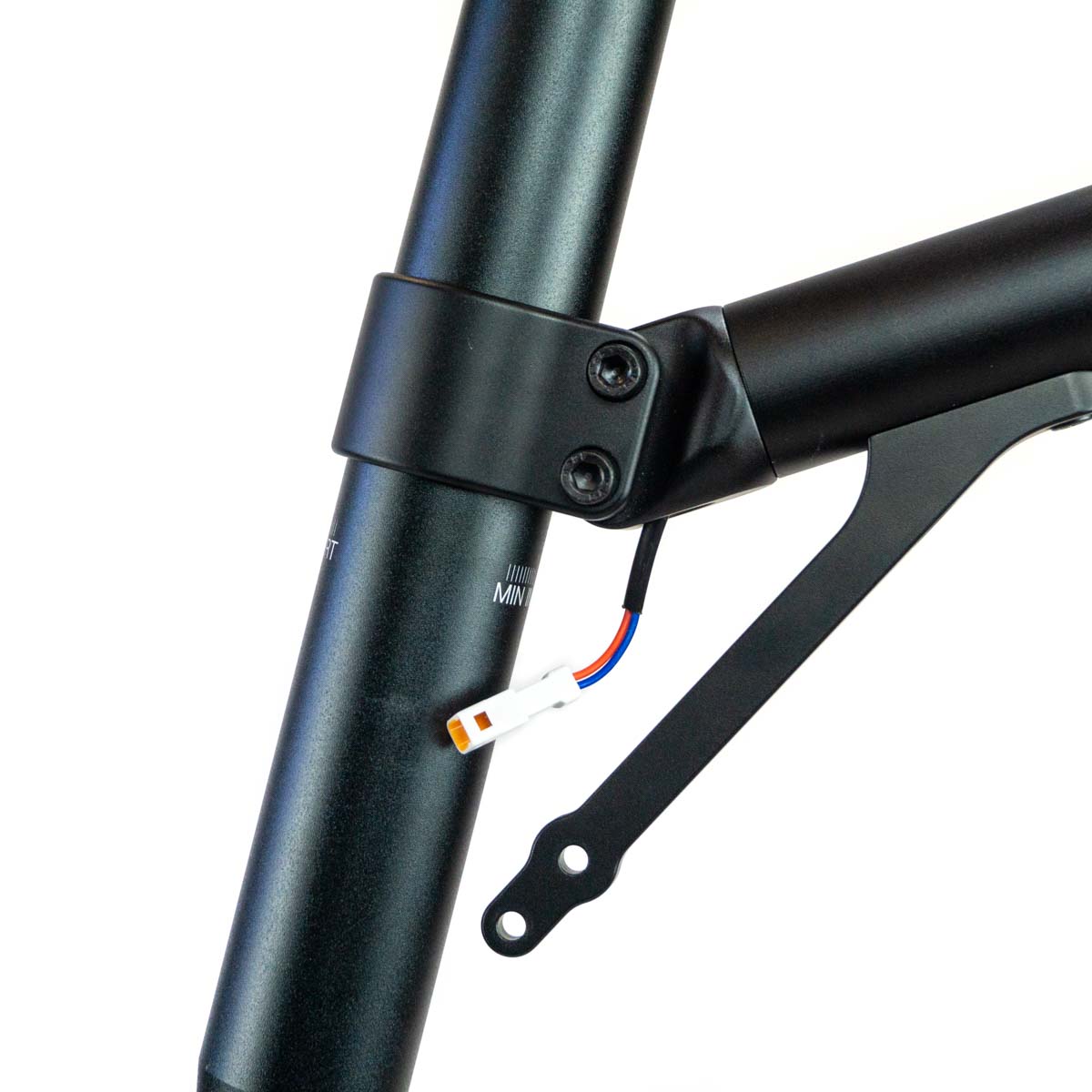

5.	Bring the clamp above the MIN insert line on the seat post
6.	Insert the seat post fully into the Gocycle so the mini insert line is not visible.
7.	Straighten the seat post and tighten the seat post clamp.

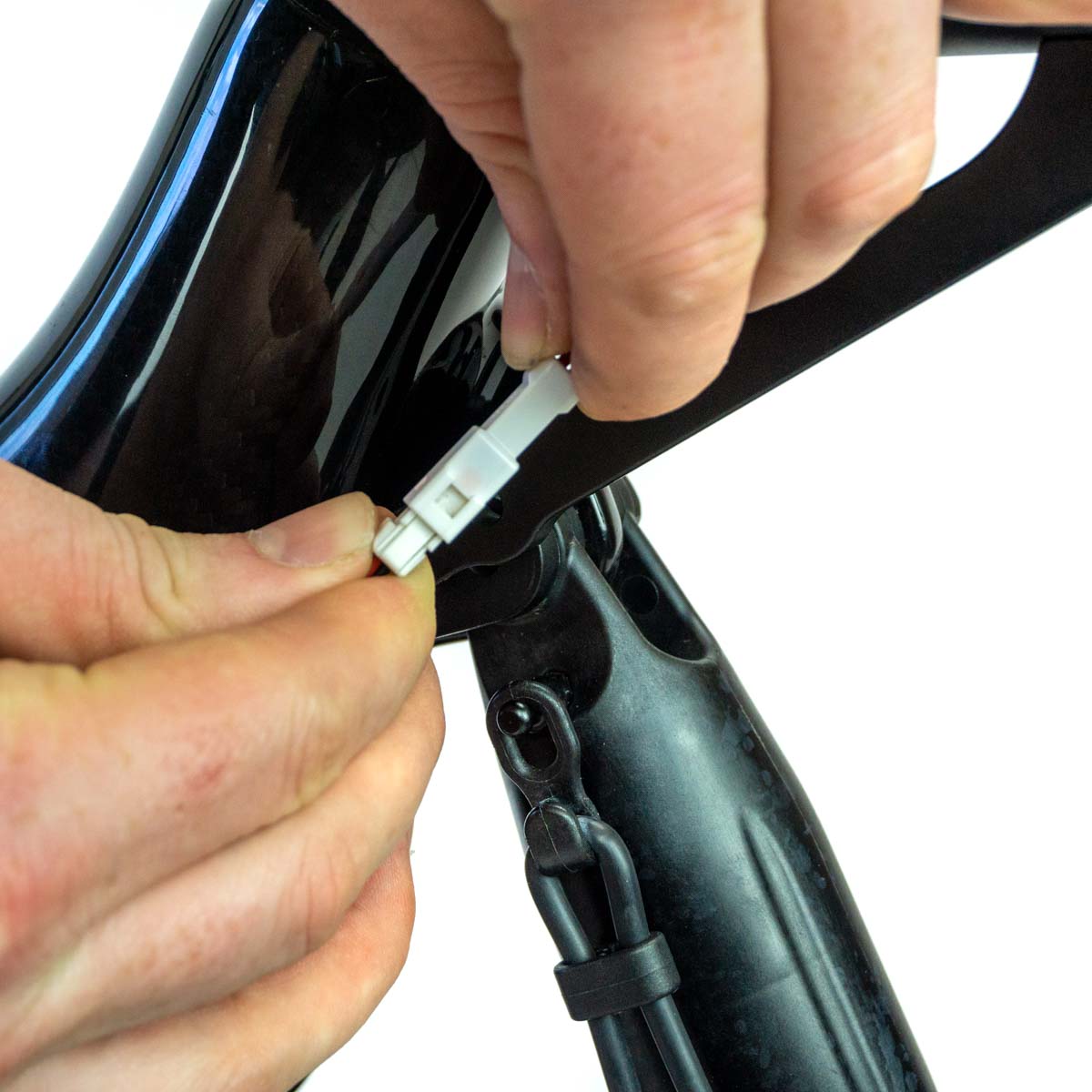

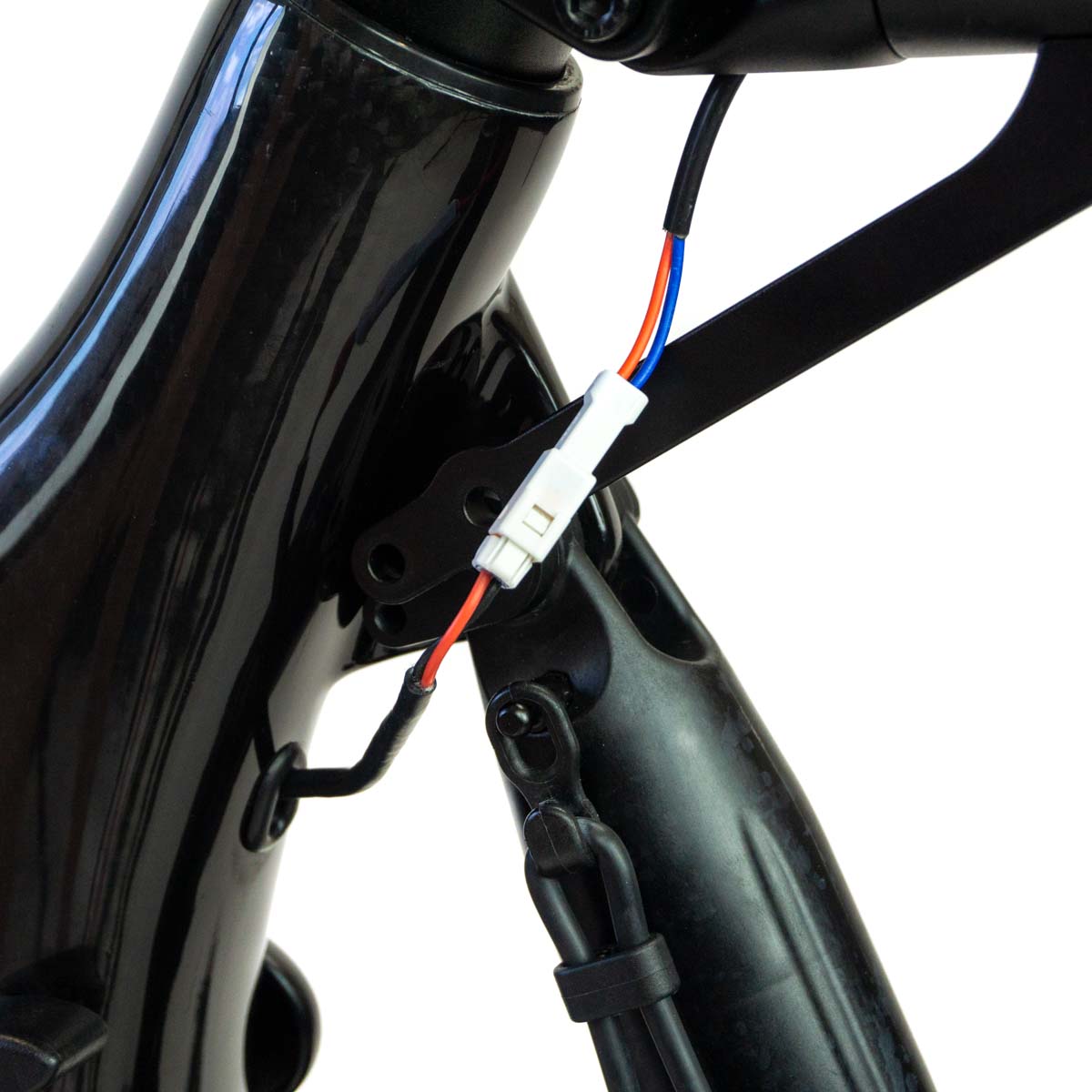

8.	Plug the rear light cable into the luggage rack light.

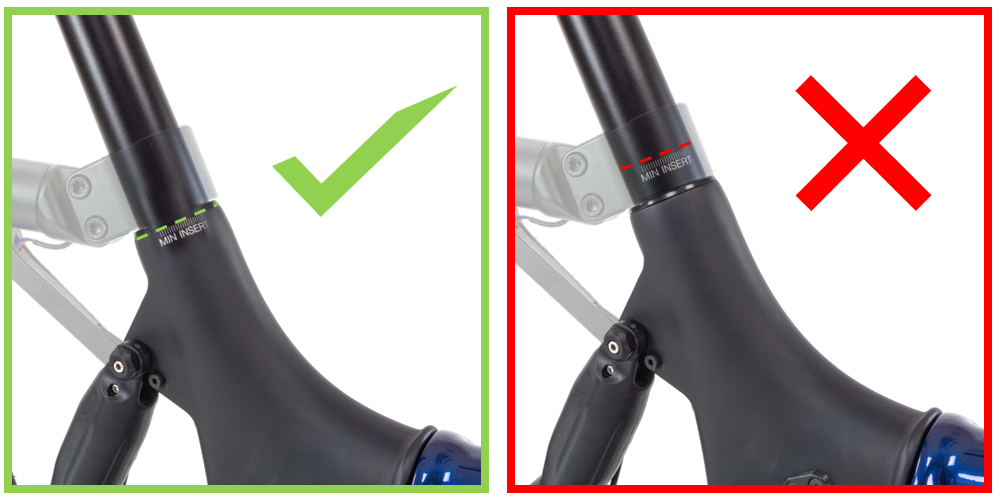

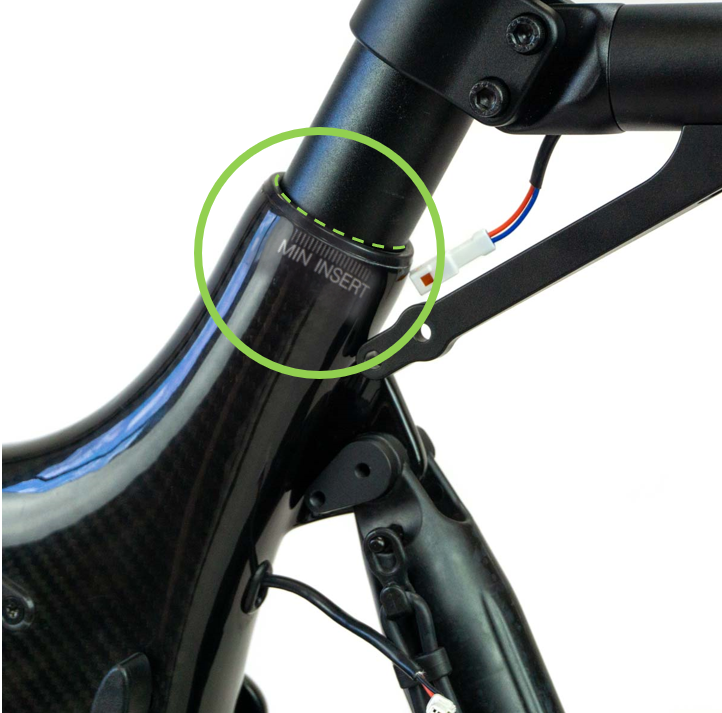

9.	When lowering make sure that the 'min insert' mark is inside the frame.

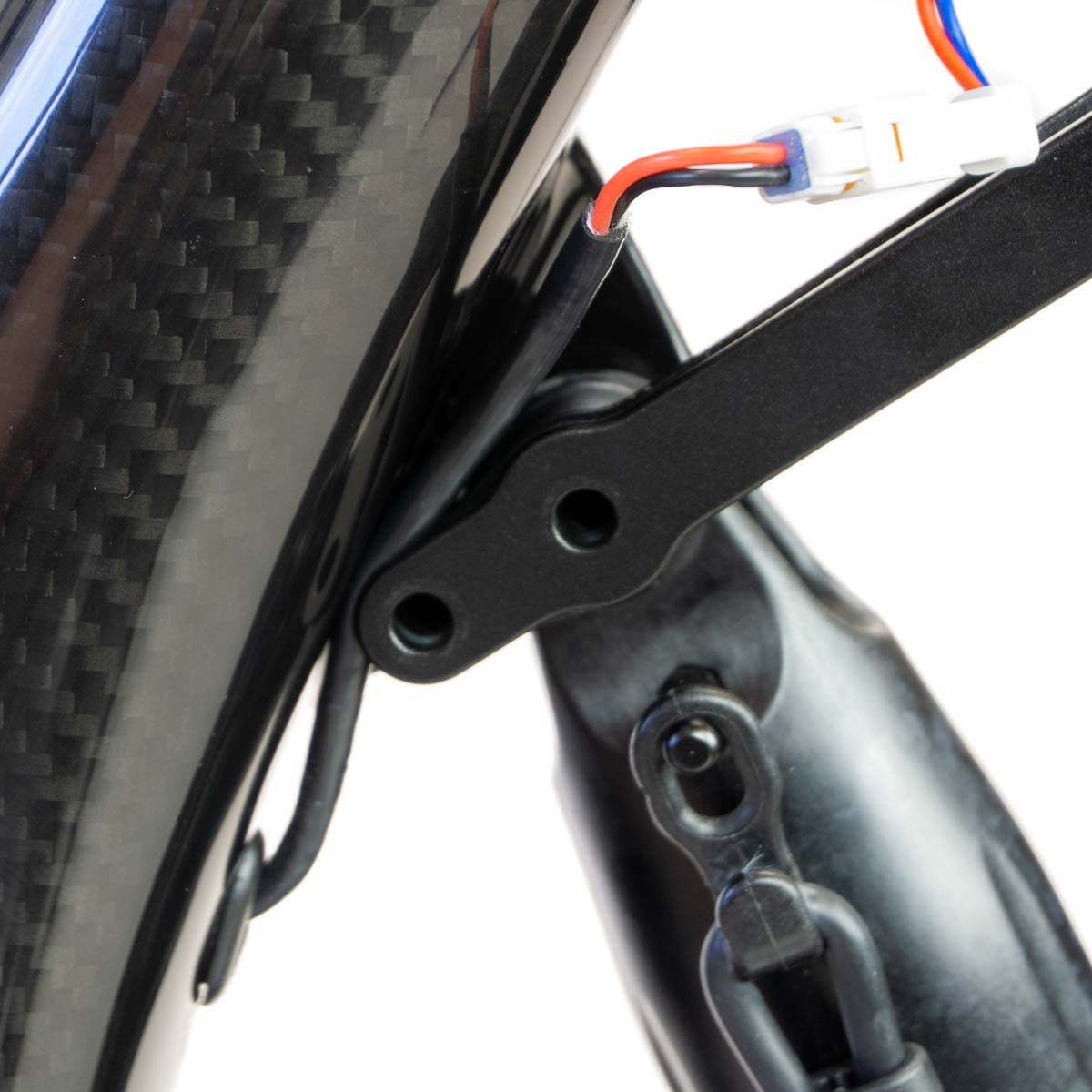

10.	Carefully lower the luggage rack into line with the bolt holes on the shock pin. Ensure the rear light cable is fed into the channel and is not pinched.

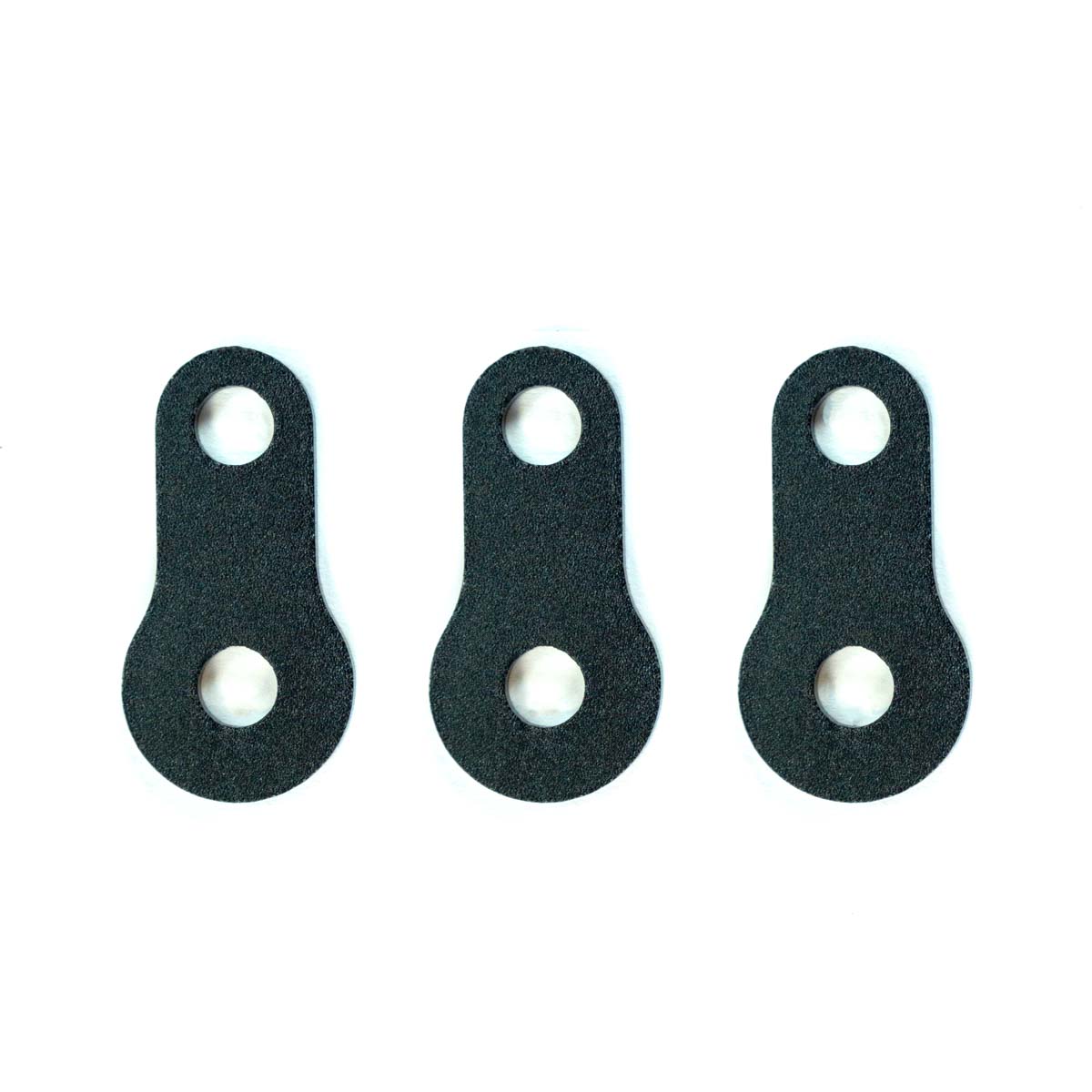

11.	If needed, fit one of the luggage rack spacers to ensure the luggage rack is in line with the rear wheel. The spacers are 1.5mm, 2.0mm and 2.5mm thick.

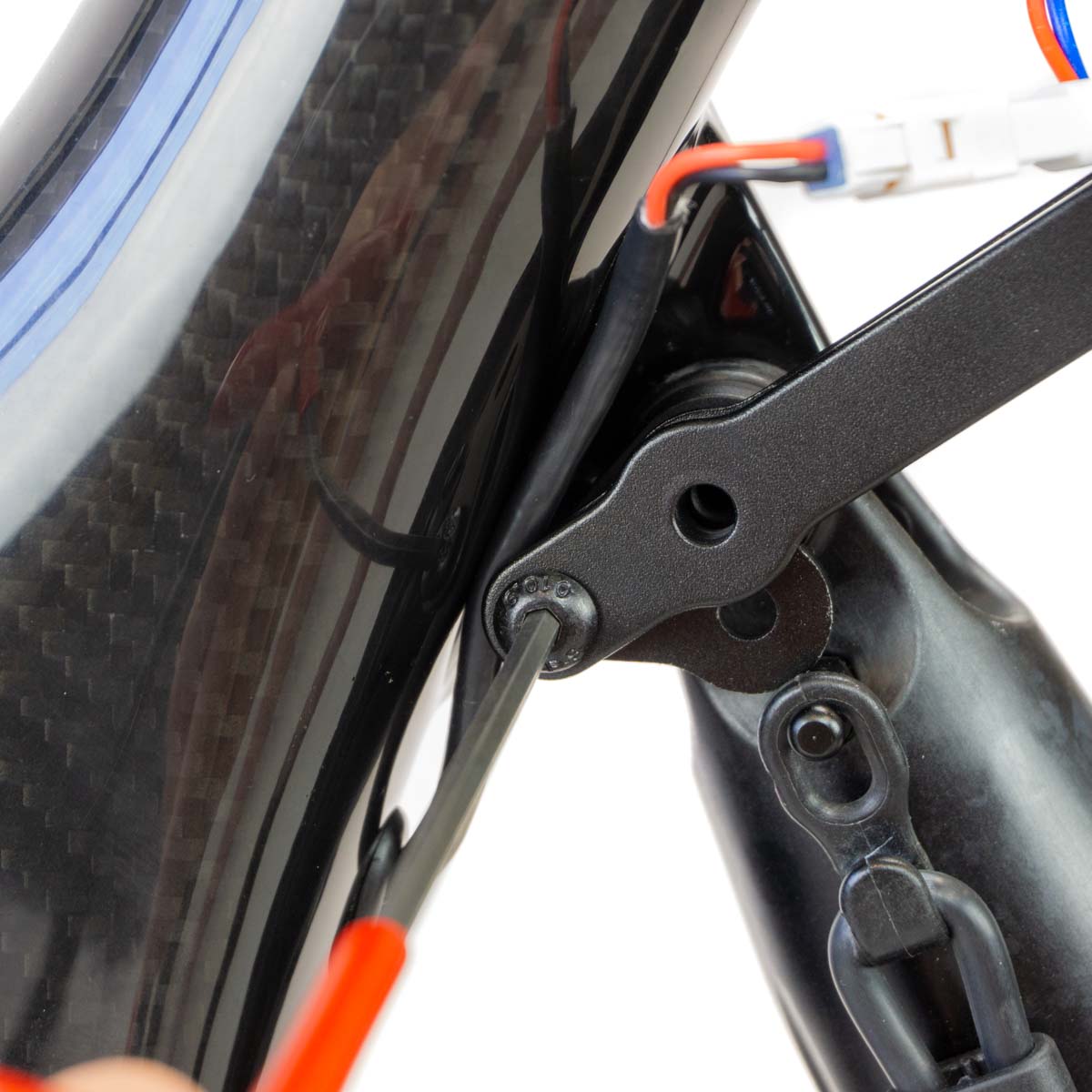

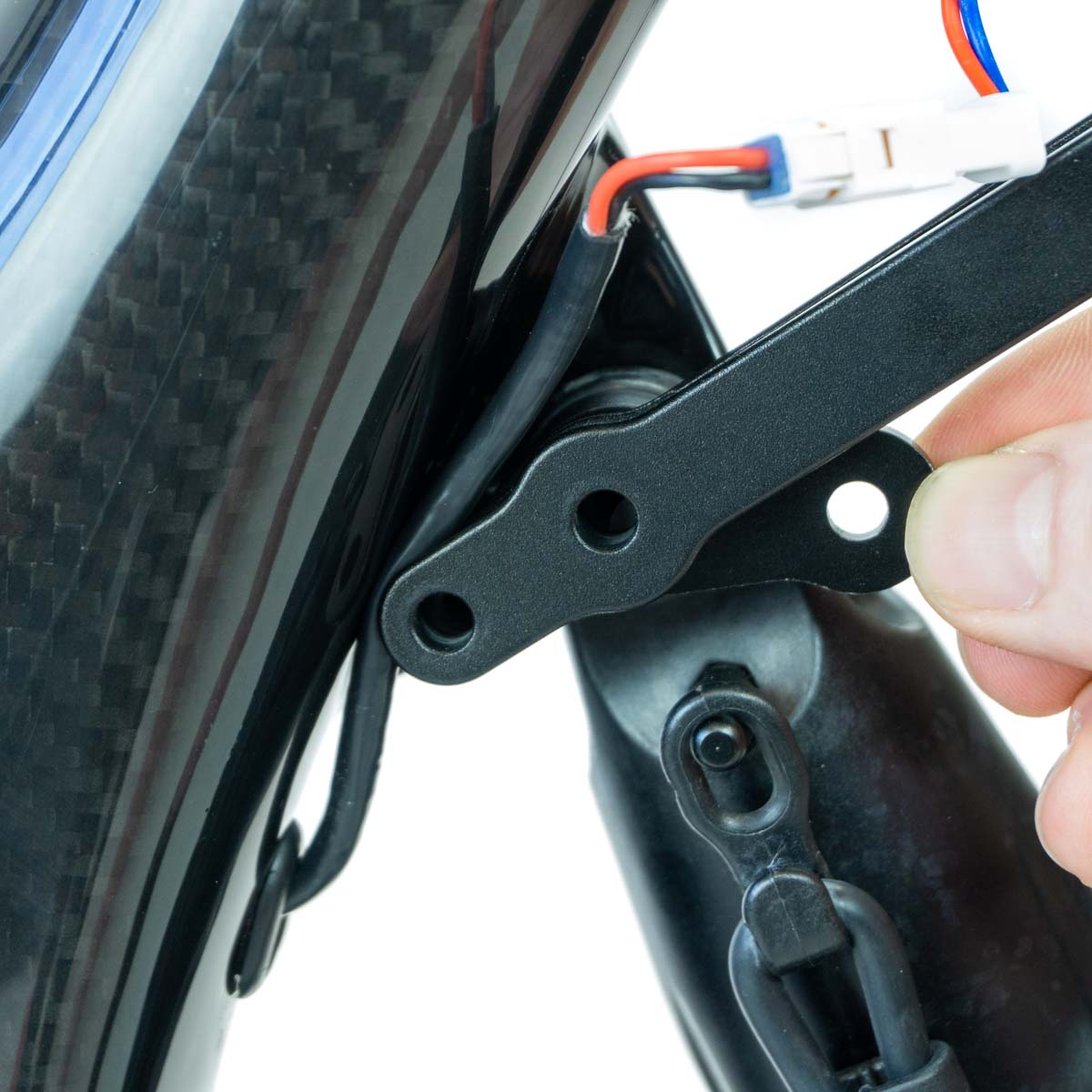

12.	Line the spacer up to the lower hole and insert the lower screw. Do not fully tighten the screw.
12.	Align the spacer with the upper hole and insert the upper screw. Do not fully tighten the screw.

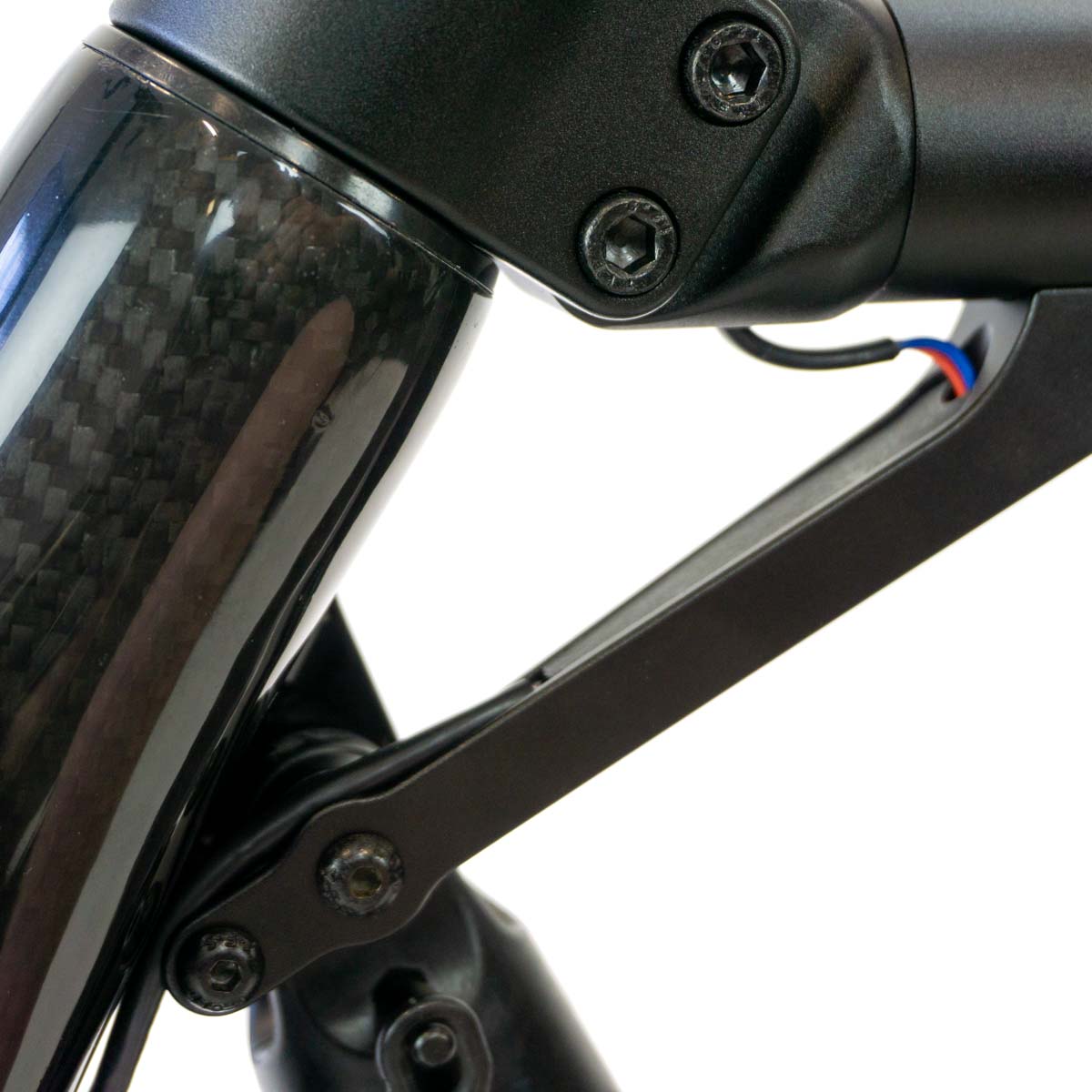

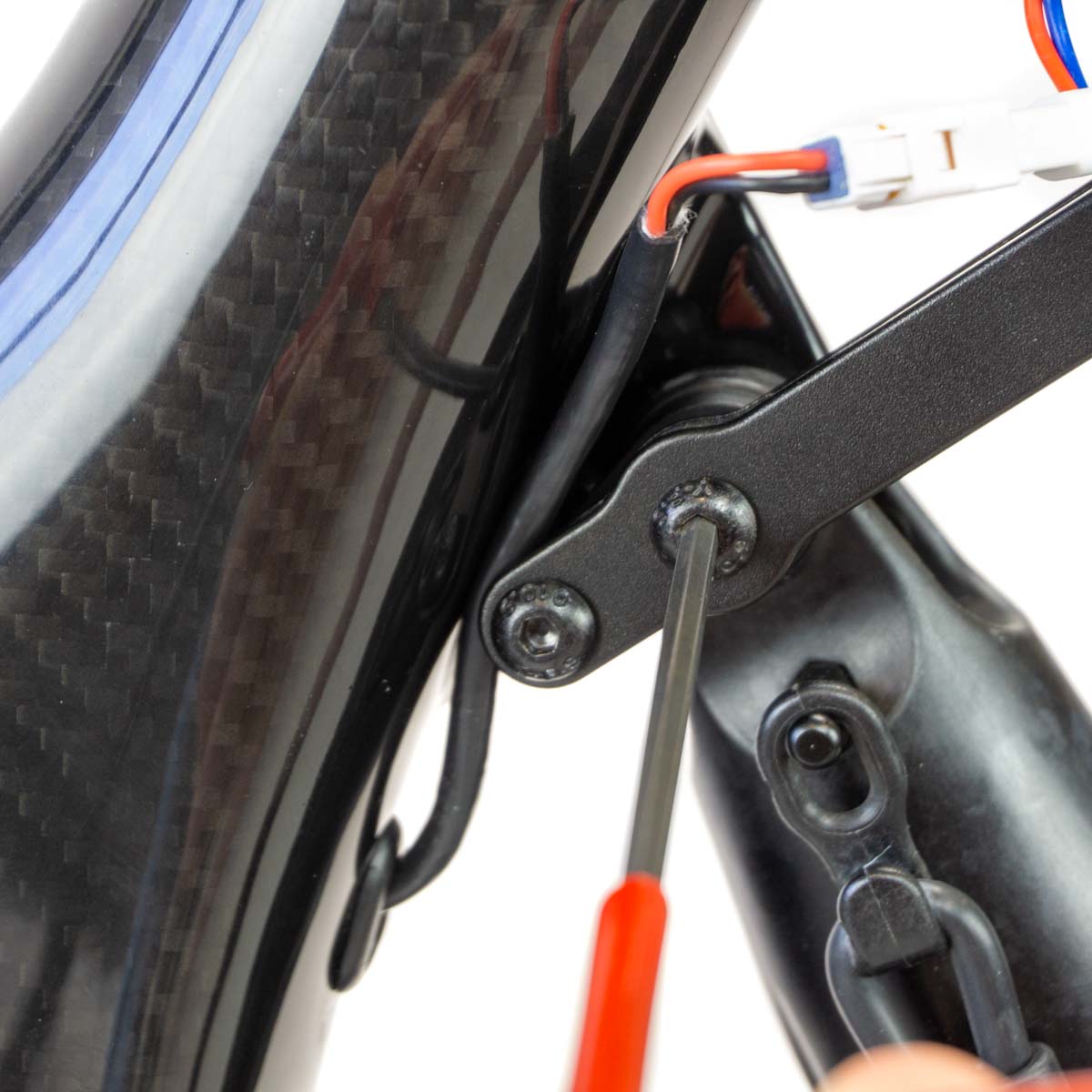

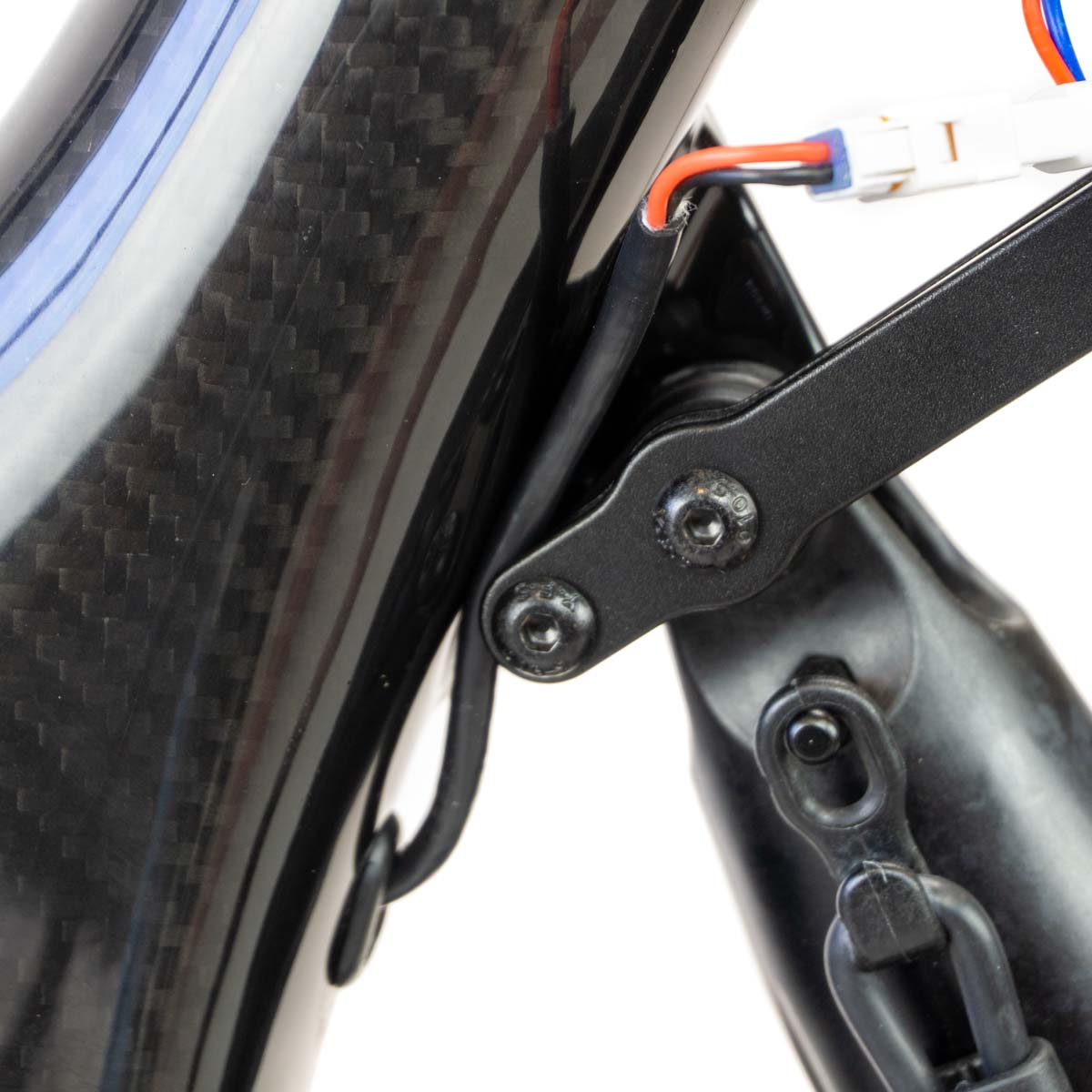

13.	With the spacer installed, tighten both screws to 4-5Nm

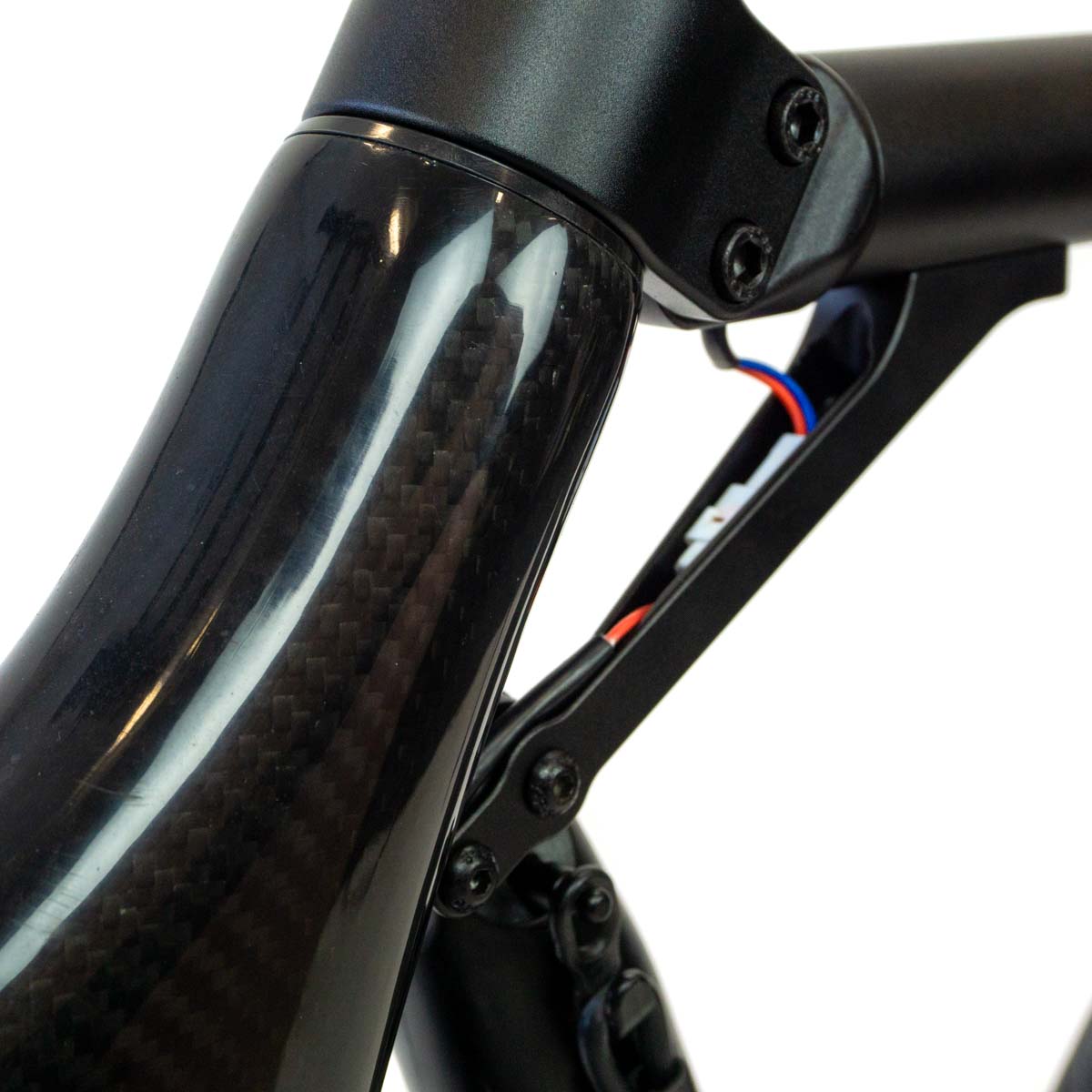

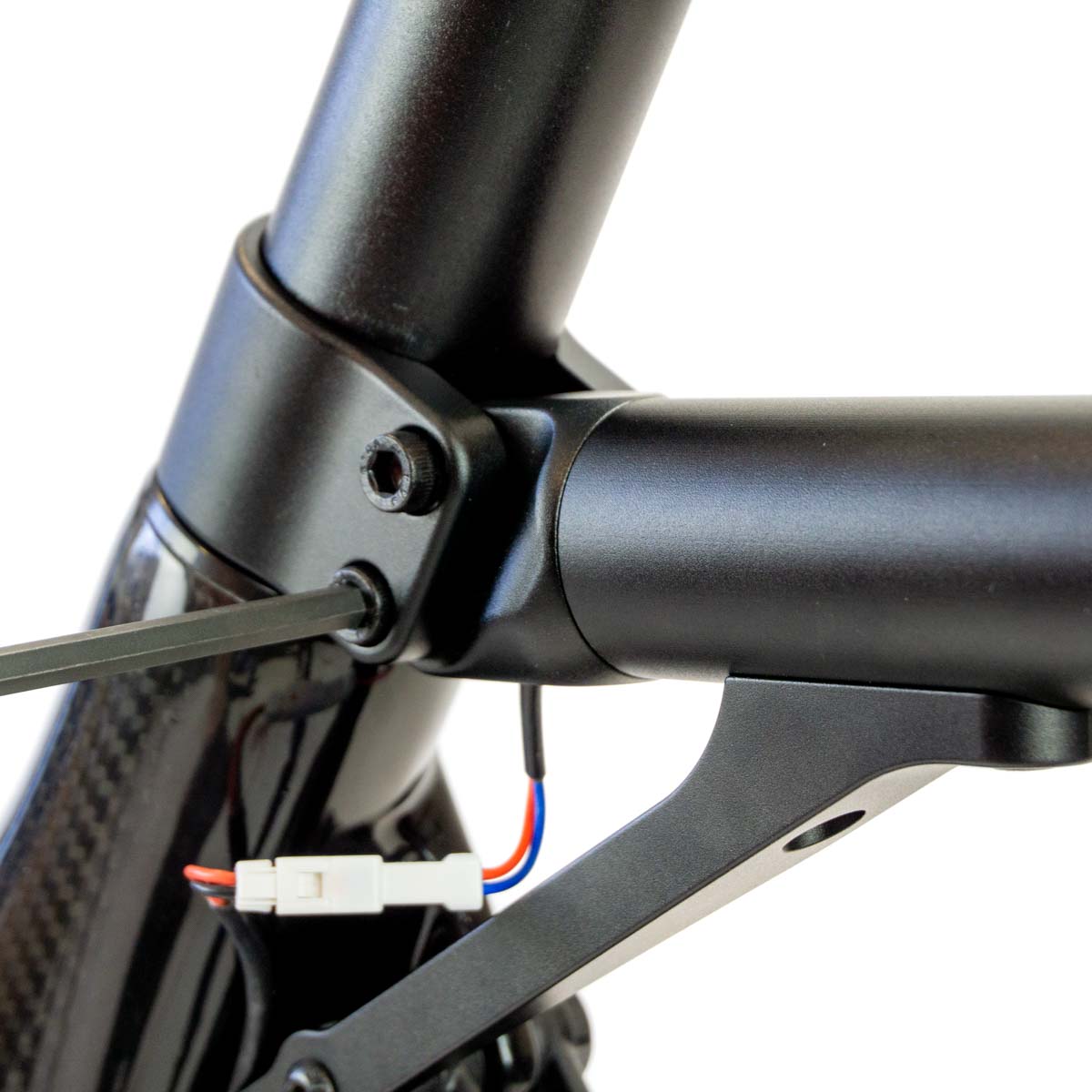

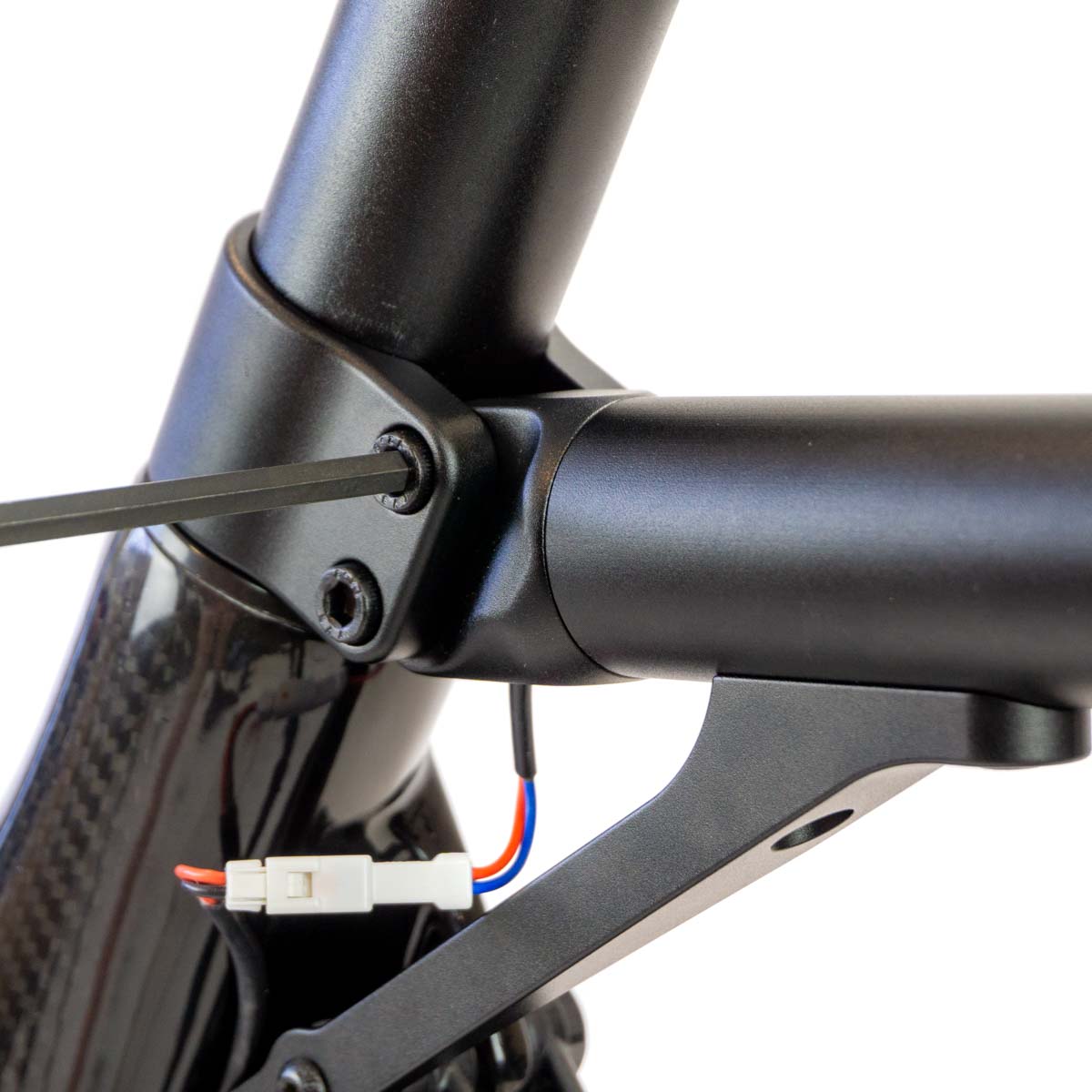

14.	Tighten both luggage rack seat post clamp screws a few turns at a time. Once tight ensure both are torqued to 6-8Nm

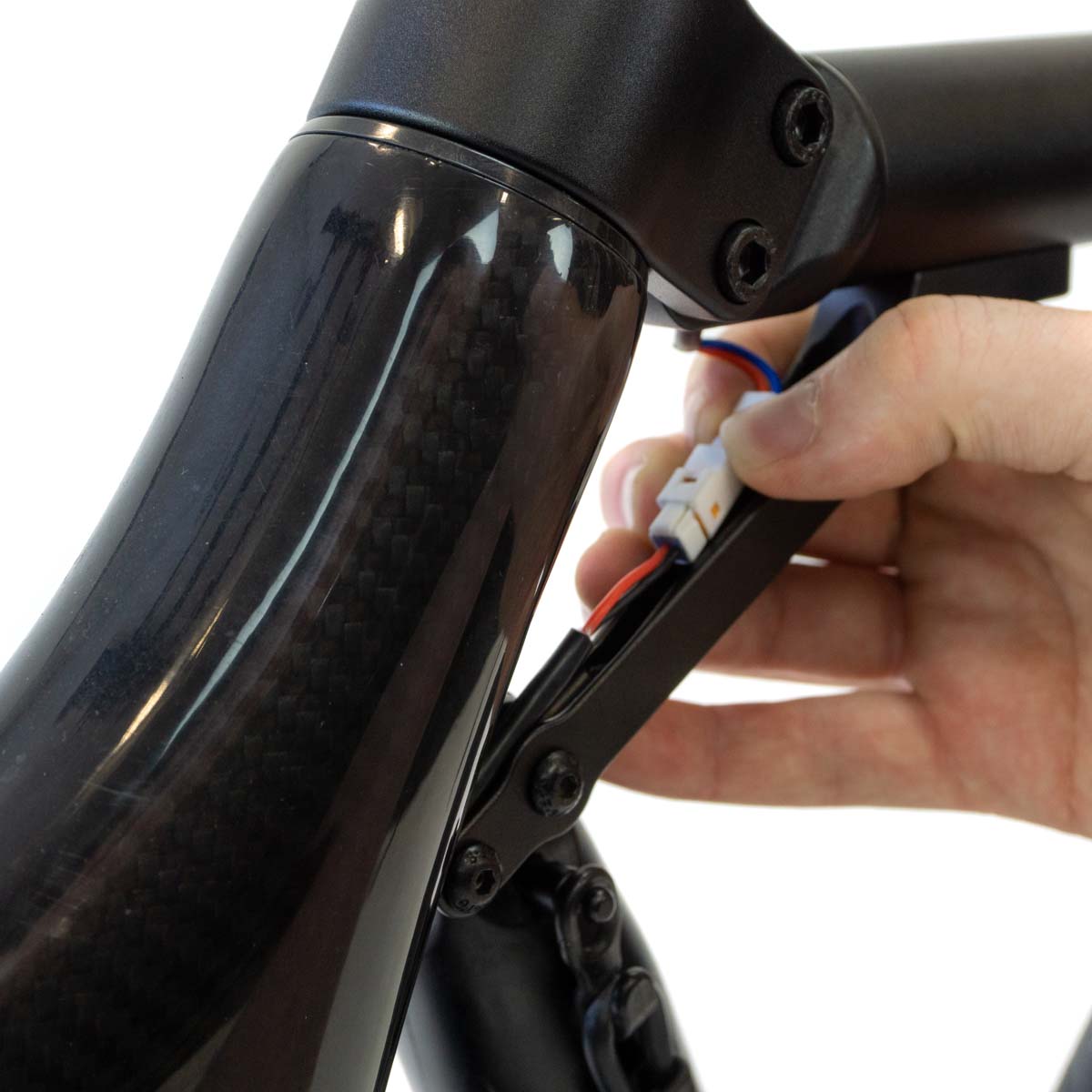

15.	Take the connector plug and place it into the luggage rack strut.

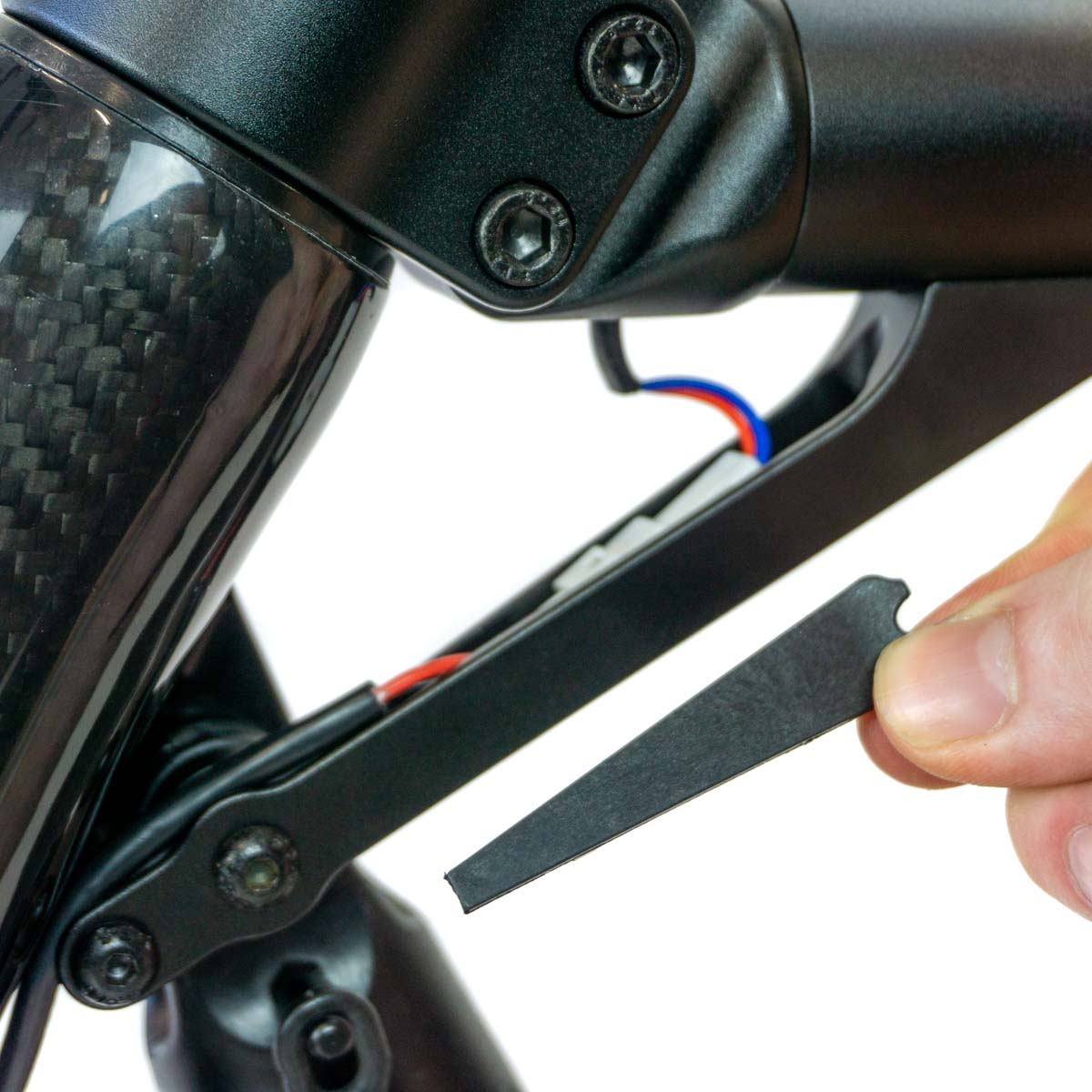

16.	Place the connector cover over the connector and press flush into the luggage rack strut.
18.	Luggage rack installed

Safety Information

Please read the following safety information before installing the Gocycle rear Luggage Rack:

1. The Gocycle Rear Luggage Rack is intended to be mounted to a Gocycle only. Do not attempt to mount this Luggage Rack to any other bicycle.
2. The Gocycle G4 Rear Luggage Rack is compatible with the following Gocycle models; G4, G4i and G4i+
3. Instructions for mounting the Luggage Rack can be found above.
4. All fasteners should be secured before riding. Check the instruction video for correct adjustment of the fasteners.
5. The maximum load capacity for the Gocycle Rear Luggage Rack is 10kg. Do not exceed the maximum permissible load of 10kg.
6. Always distribute luggage evenly between both sides of the Luggage Rack.
7. Where possible adjust luggage towards front of Gocycle with sufficient heel clearance.
8. The Gocycle Rear Luggage Rack is not suitable for the attachment of a child seat.
9. The Gocycle Rear Luggage Rack is not designed to pull a trailer.
10. Luggage can only be safely carried on the carrier section of the rack.
11. Do not modify the Gocycle rear Luggage Rack in any way.
12. The Gocycle may behave differently (particularly with regard to steering and braking) when the Luggage Rack is loaded.
13. When luggage is mounted to the Rack, ensure that there are no loose straps that could get caught in the rear wheel.
14. The reflector should be mounted to the main luggage rack tube. The reflector and lights should not be obstructed by luggage when attached to the Luggage Rack.
15. The maximum compatible wheel size is the same for the Gocycle itself: 20" x 2”. The Luggage Rack is compatible with Gocycle mudguards.

 Manufacturer's Information:

Gocycle®

Unit 30 Barwell Business Park

Leatherhead Road

Chessington

Surrey

KT9 2NY

United Kingdom
