Front and Rear Reflectors
Front and rear reflectors are supplied as standard with your Gocycle. The Front Reflector can be found in the small parts bag. The Rear Reflector is pre-installed under the saddle.
Installing the Front Reflector for G4i and G4i+
| Lift the rubber stem cover to expose the upper handlebar stem. | |

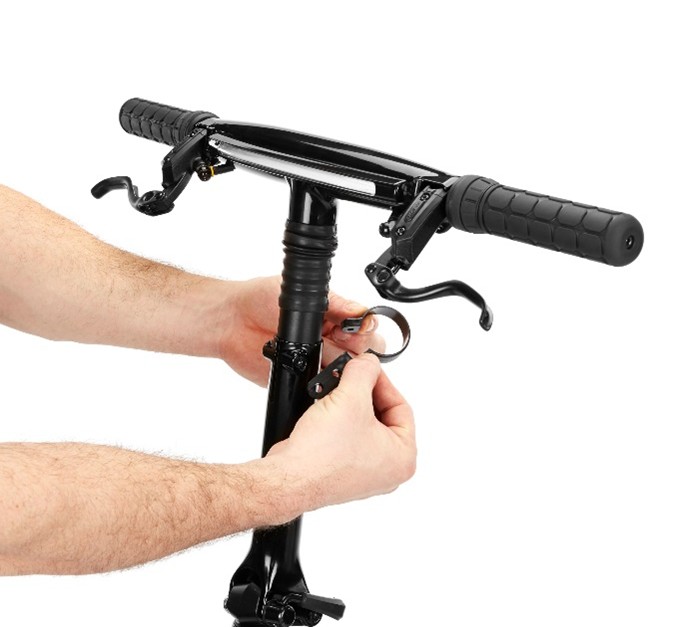

| Open the reflector bracket. | |

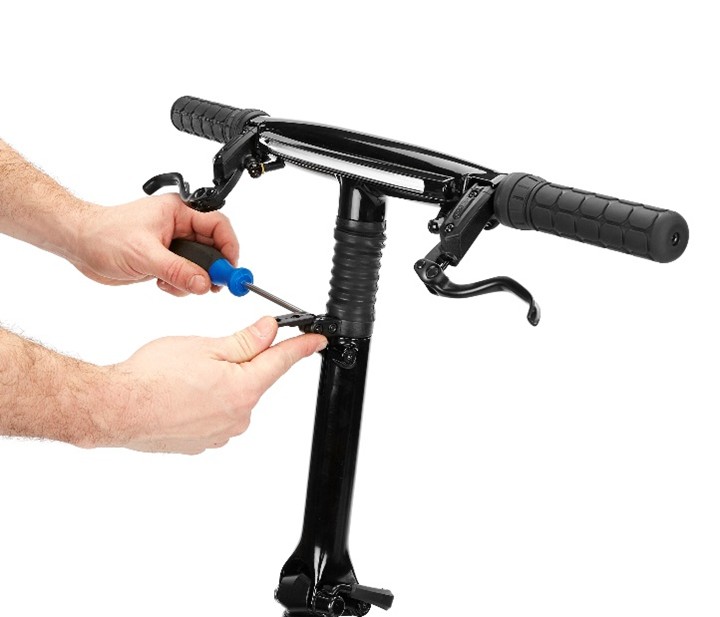

| Place the bracket around the upper stem and tighten, using a screwdriver, to secure in the position as shown. | |

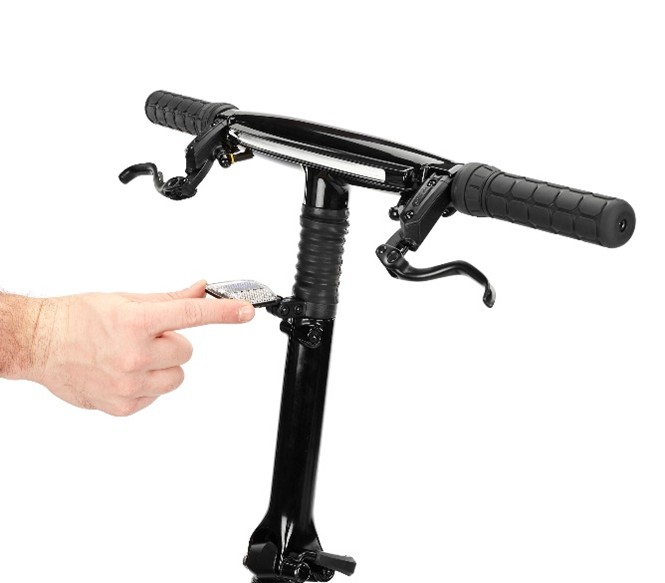

| Mount the front (white) reflector onto the bracket and listen for a “click”. | |

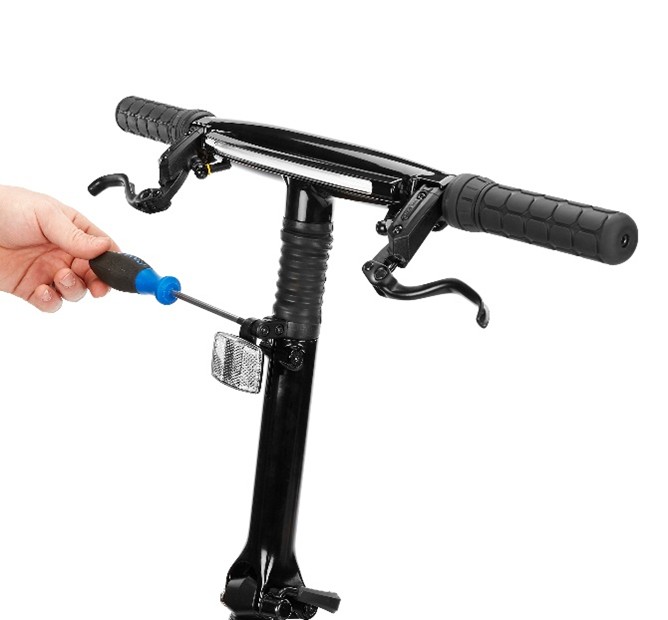

| Adjust and tighten the bracket to ensure that the reflector is vertical. |
Installing the Front Reflector for G4

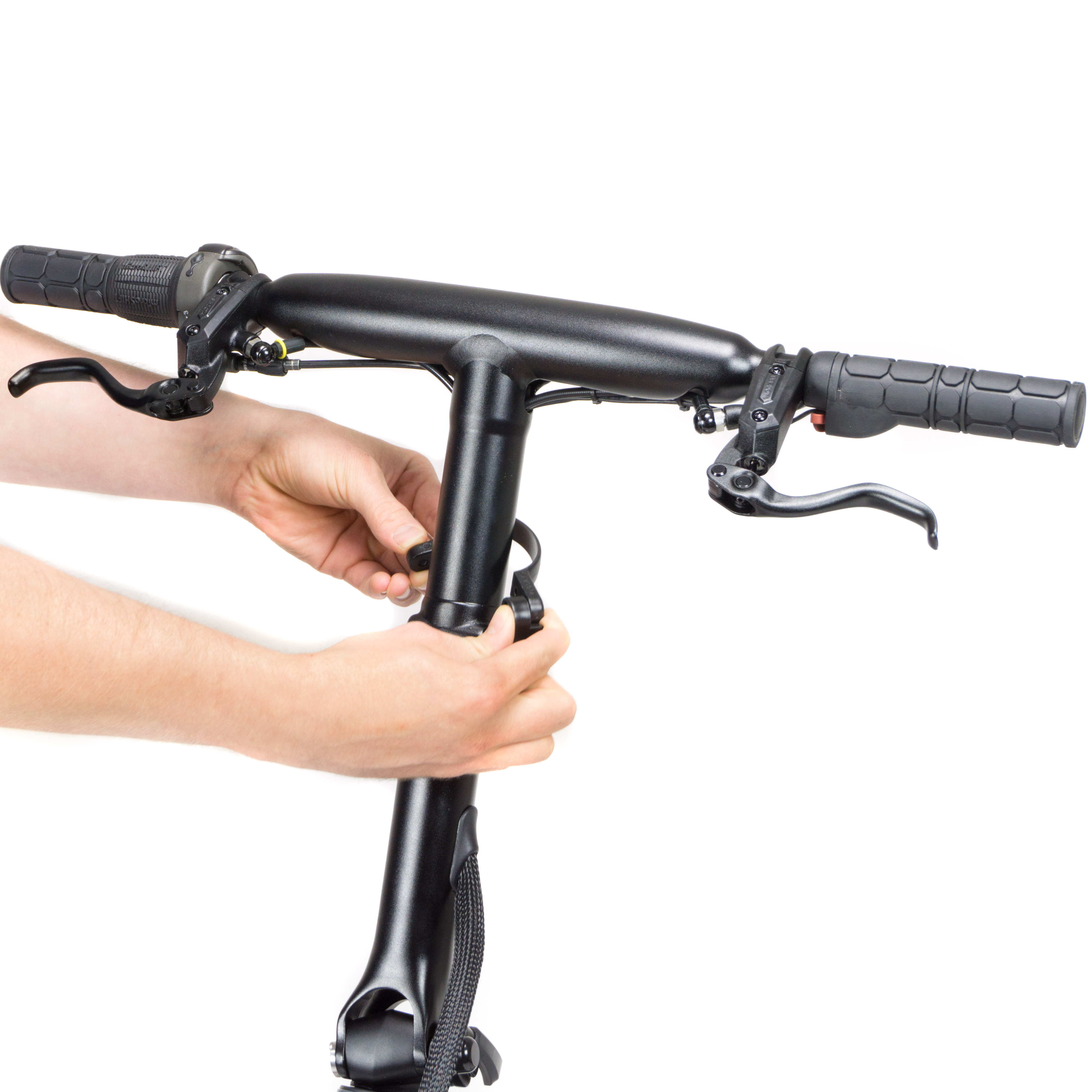

| Open the reflector bracket as shown. | |

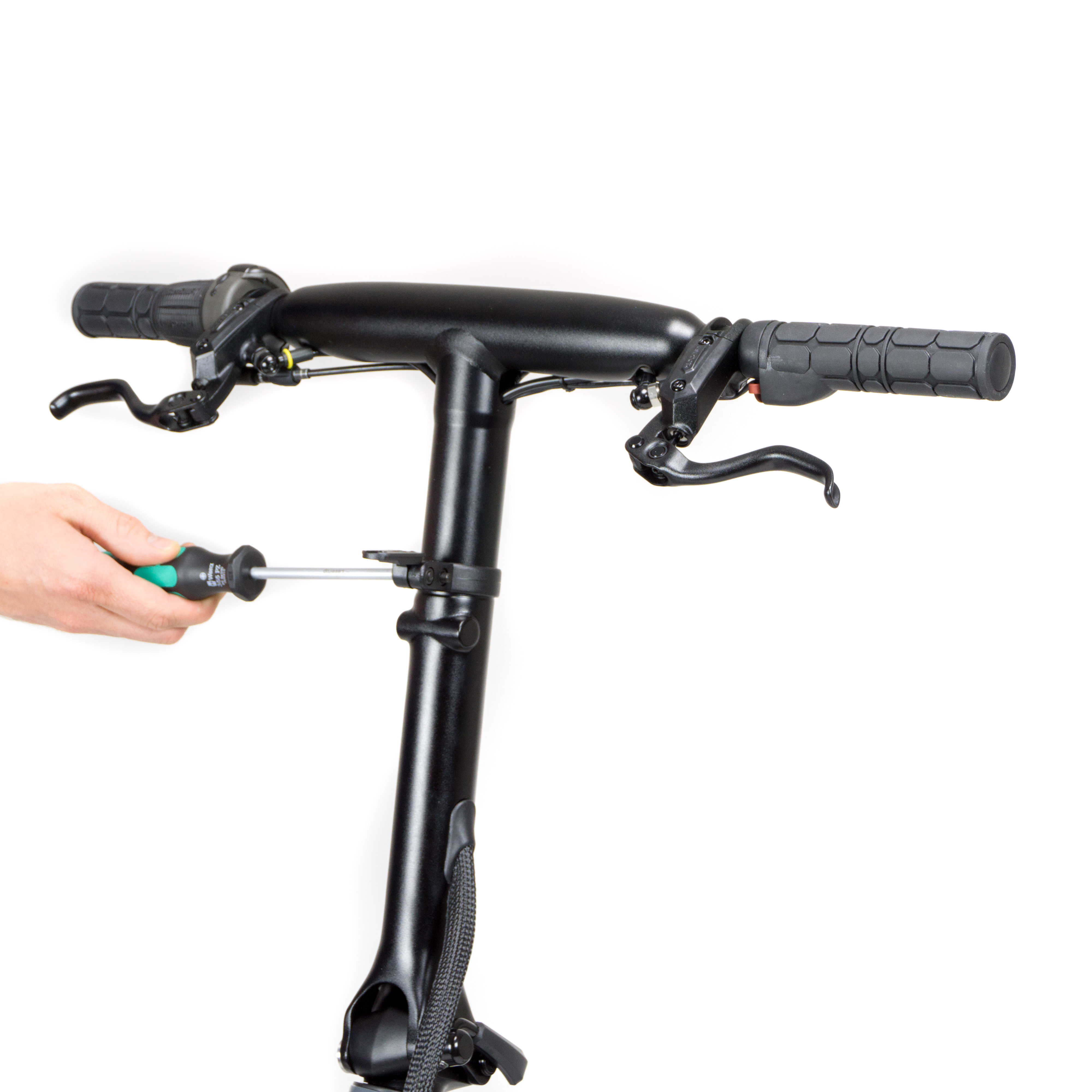

| Place the bracket around the upper stem and tighten, using a screwdriver, to secure as shown. | |

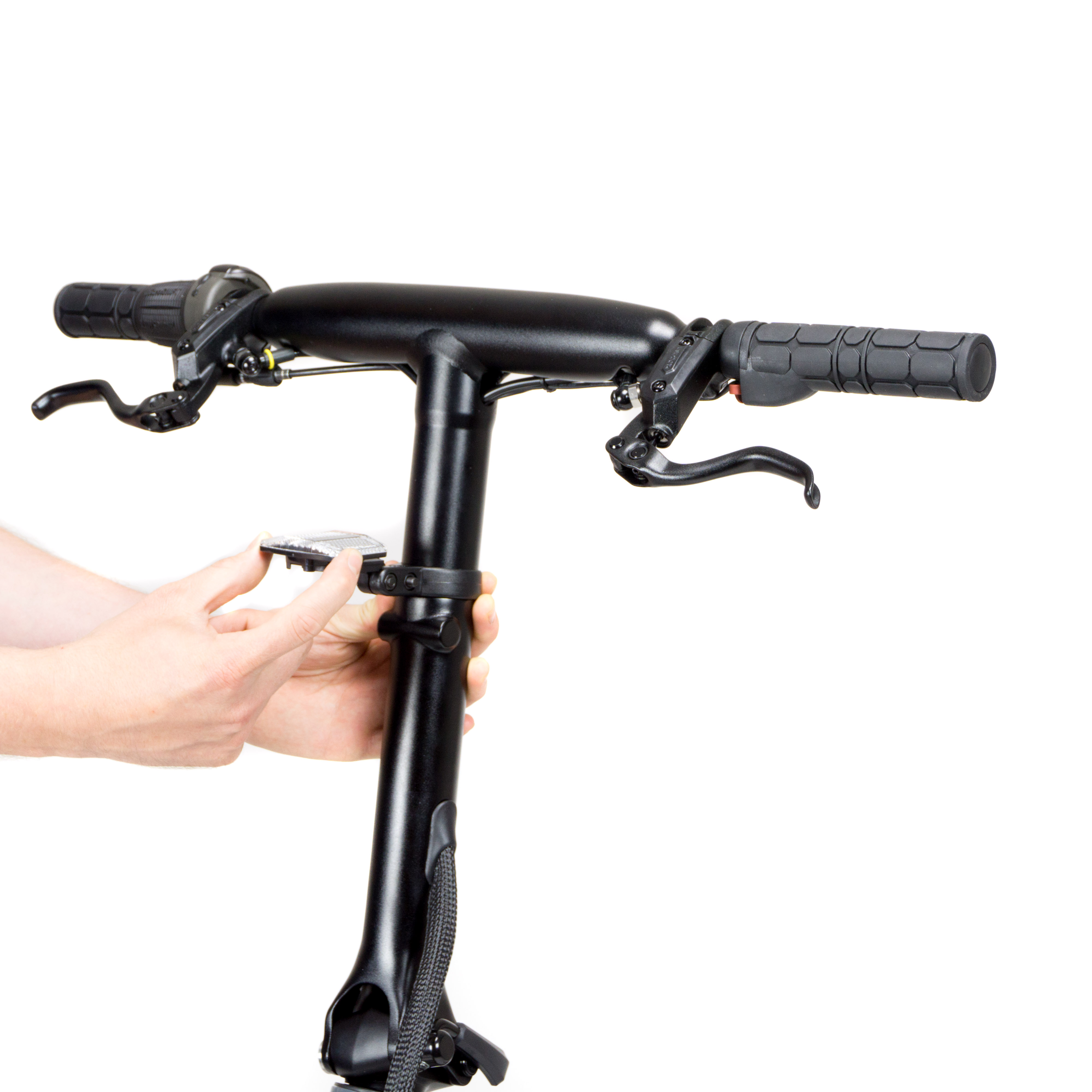

| Mount the front (white) reflector onto the bracket as shown. Ensure that the reflector is completely engaged with the bracket. | |
| Adjust the bracket to ensure that the reflector is vertical and tighten the bolt to 4-6 Nm. |
Rear Reflector

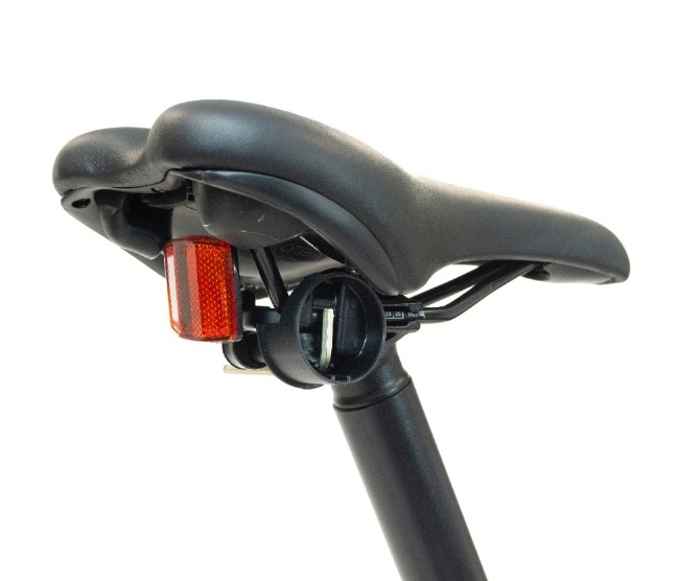

The rear reflector is pre-installed under the saddle.
Ensure that clothing does not cover the reflector when riding, for example a long jacket or coat or carrier bag or backpack. If in doubt, ask a friend to see if the reflector is visible from all appropriate angles while you are riding.
