Depending on the the rider's height and riding style, the handlebar can be lowered by 50mm (2") from the factory default position. The handlebar cannot be raised higher than the factory default position. There are 2 positions.
The handlebar height can be adjusted on the following models: G2, G3, G3C, G3+, GXi, G4i and G4i+.
How to Adjust the Handlebar Height
|

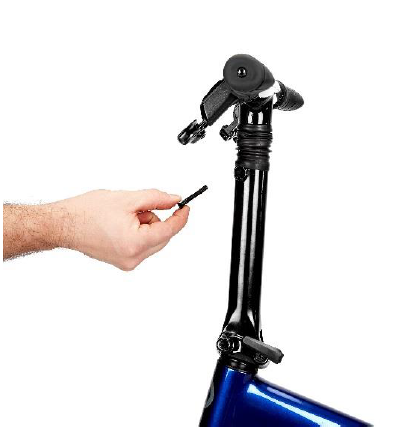

1. Undo and remove the handlebar stem bolt using a Torx tool, as shown. |
|
|

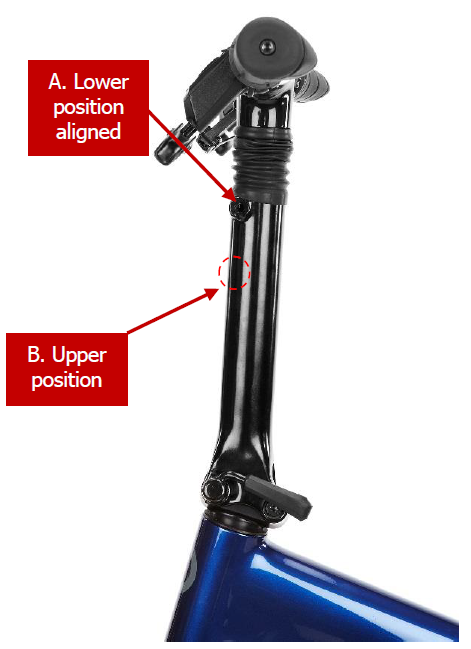

2. Lift the rubber dust cover to expose the lower position. Note! Hole “B. Upper position” denotes the maximum height of the handlebar stem. |
|
|

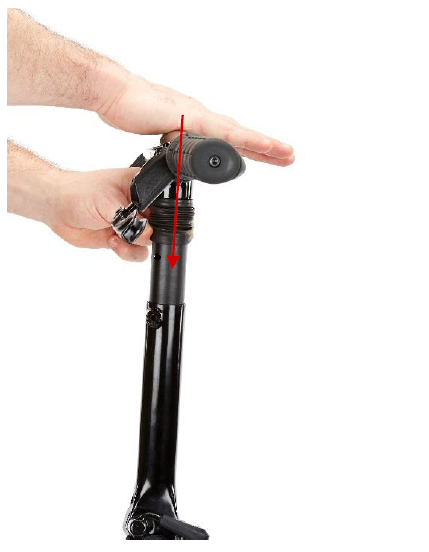

3. Push down to align the lower position. NB. For Gocycle GXi or G4i, rotate the handlebars 360° anti-clockwise, then align into the lower position. |
|
|
4.Check that the cables can not be caught in the folding mechanism, if they are repeat step 3. |
|
|
5. Ensure the bolt hole and stem upper position or lower position hole are fully aligned. |
|
|
6. Reinsert the stem bolt and tighten to a torque of 6-8 Nm. CAUTION! Ensure the bolt passes through either “A. Lower position” or “B. Upper position” hole of the stem upper. |
|
If you have any questions, please contact Gocycle Tech Support using our contact form.
