G4i and G4i+ Dash
| A |
Left-hand Selector - Wrist down and hold for boost button - Wrist up to cycle through DRL modes |
| B | Right-hand Selector |
| C |
Battery charge indicator - When the motor is not providing assistance Energy consumption meter - When the motor is providing assistance |
| D | Gear selection display |
|
E |
Speed display |
| F | Blue LEDs for DRL modes |

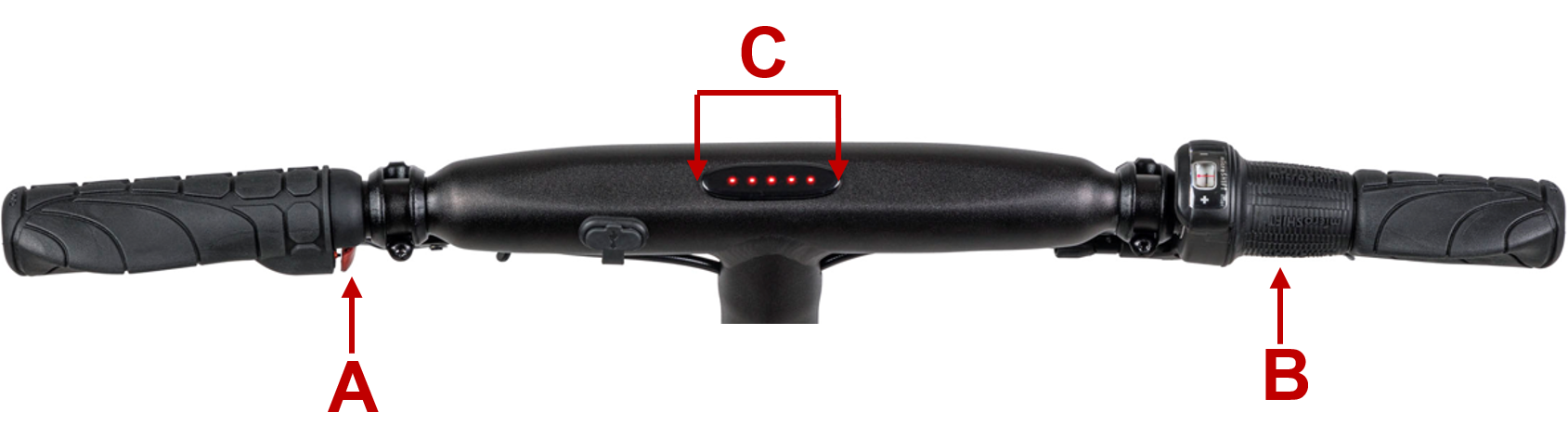

G4 Dash
| A | Boost Button |
| B | Mechanical Gear Selector |
| C |
Battery charge indicator - When the motor is not providing assistance Energy consumption meter - When the motor is providing assistance |
Dash Display Codes - G4, G4i, G4i+
If your handlebar dash display does not look normal, use the table below to learn what the issue or error may be:
Issue |
G4i, G4i+ |
G4 |
Notes |
Action |
| No data from MC | *--------- ---------* | *---* | Contact Dealer or Gocycle | |
| Bluetooth failure | --------** **-------- | **-** | Contact Dealer or Gocycle | |
| Firmware updating | -*-*-*-*-* *-*-*-*-*- | *-*-* | Firmware is currently being updated | Wait for update to complete |
| Log Data Uploading | -*-*-*-*-* *-*-*-*-*- | *-*-* | Log data is being uploaded | Wait for log to upload |
| Firmware update failure | ---------- ---------- | %-%-% | Unsuccessful update | Force a Firmware Update |
| Service Reminder | ********** ---------- | **--- | Alternates between these two displays | Check Mileage and Service Intervals and Checks |
| ---------- ********** | ---** | |||
| Motor Over Temperature | ---------- %%%%%%---- | n/a | Right LEDs flashing, more LEDs = higher temperature | Do not use the motor for few minutes and allow to cool |
| Motor Controller Over Temperature | ----%%%%%% ---------- | n/a | Left LEDs flashing, more LEDs = higher temperature | Do not use the motor for few minutes and allow to cool |
Key:
- LED off
* LED on
% LED blinking
MC = Motor Controller
Dash = handlebar display
