This article is for Gocycle G4, Gocycle G4i and Gocycle G4i+ only. For installation of other models please see - Light Kit guides for frame numbers lower than 919334
Jump to:
Using the Front and Rear Lights
The front and rear light for the Gocycle G4 and G4i of bikes automatically switch on when the bike the rear wheel moves. They will then automatically switch off after 60 seconds if no movement is detected.
On the G4i, The front and rear lights can be switched off if the DRL is turned off using the left twist switch.
Installation guides
Video guide
This video shows how to install the front and rear light on a Gocycle G4. The process is the same for G4i and G4i+
Photo guide
Jump to:

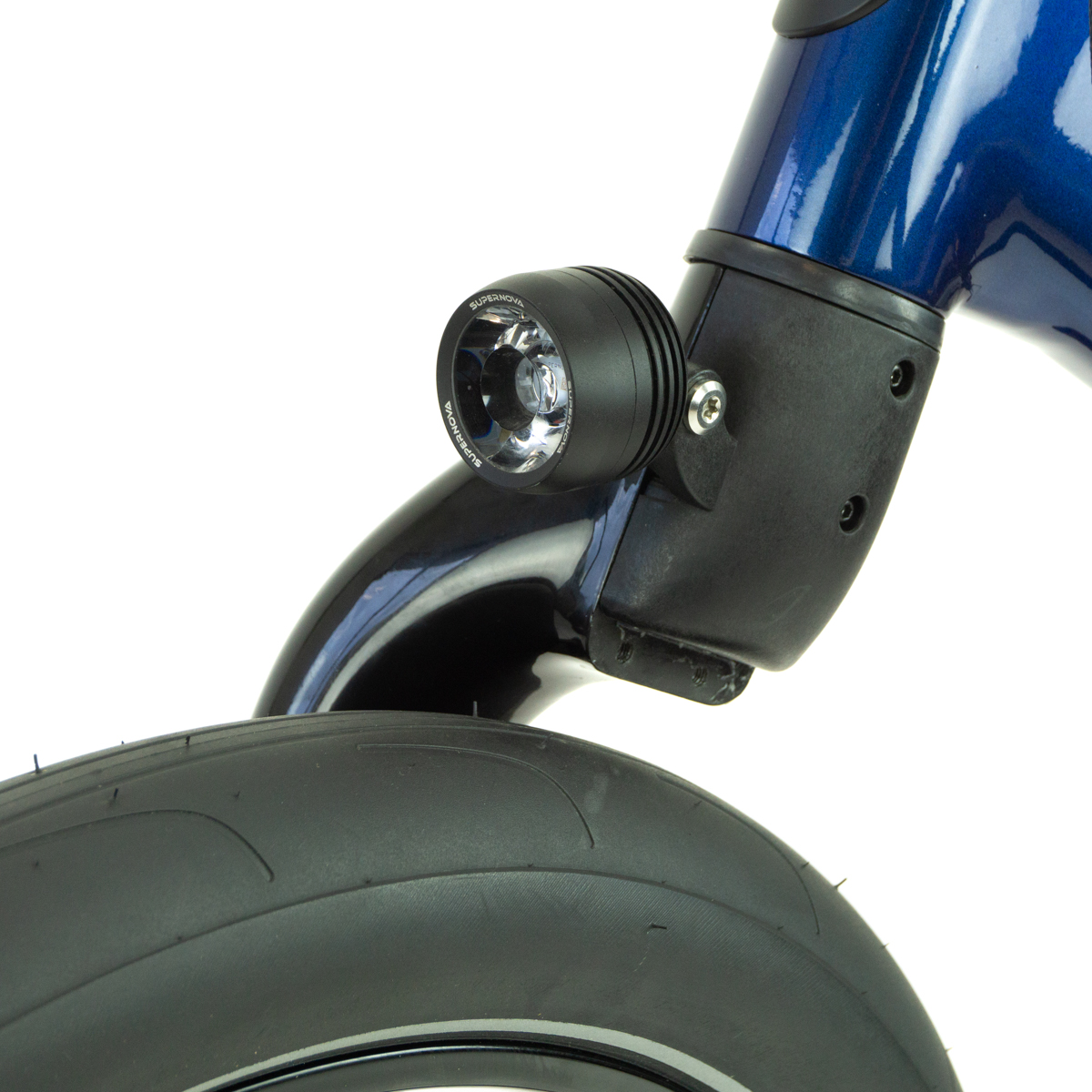

Installing the G4 Front Light

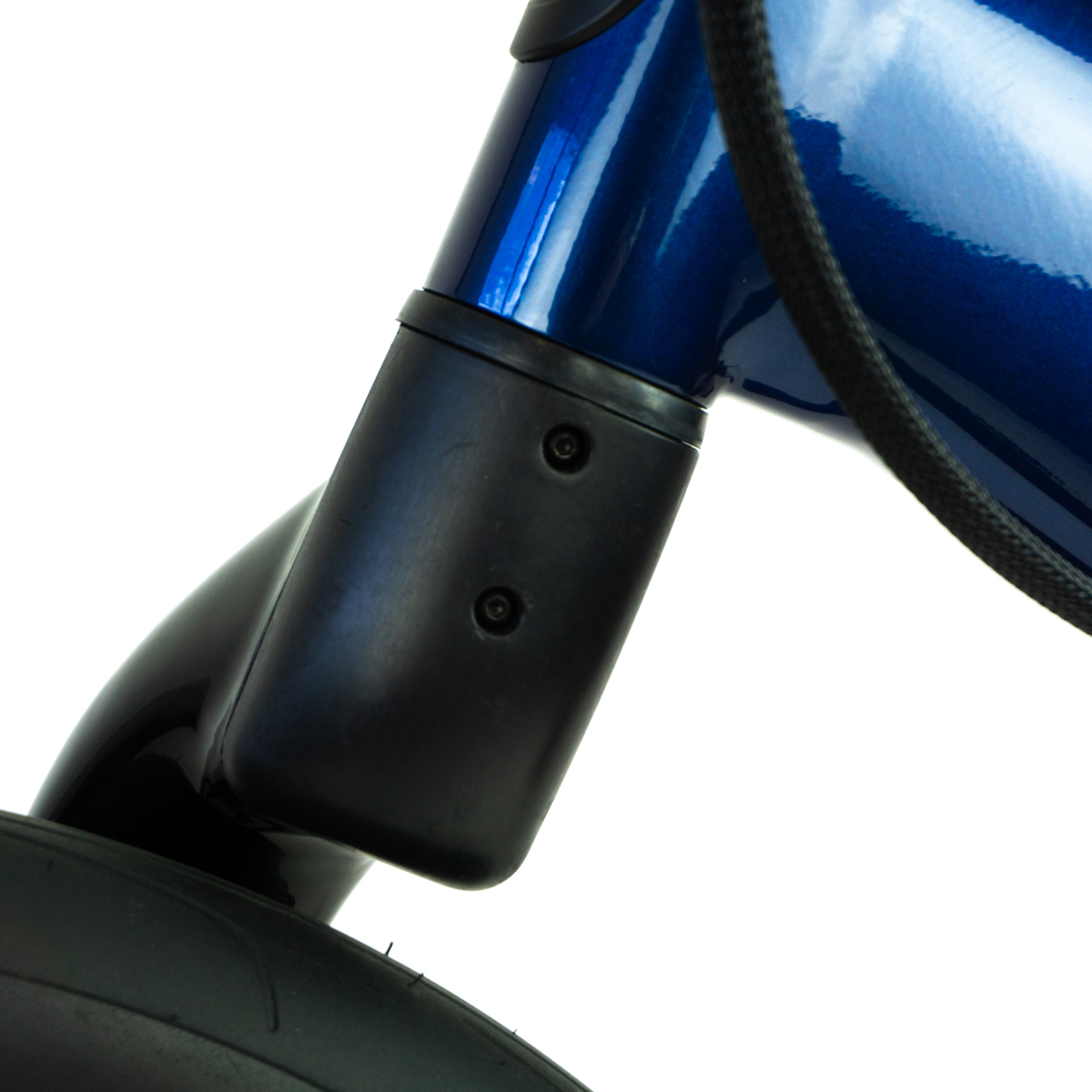

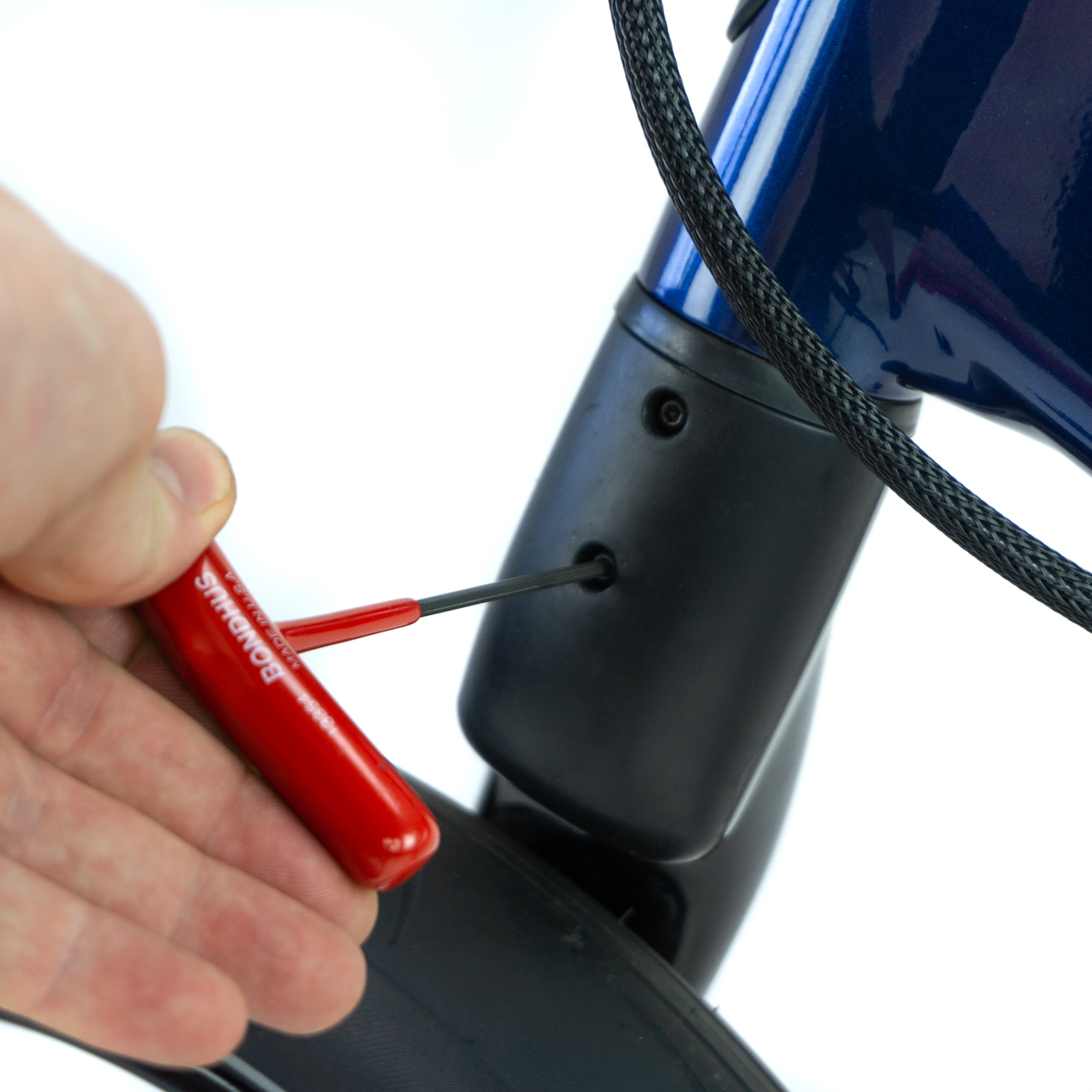

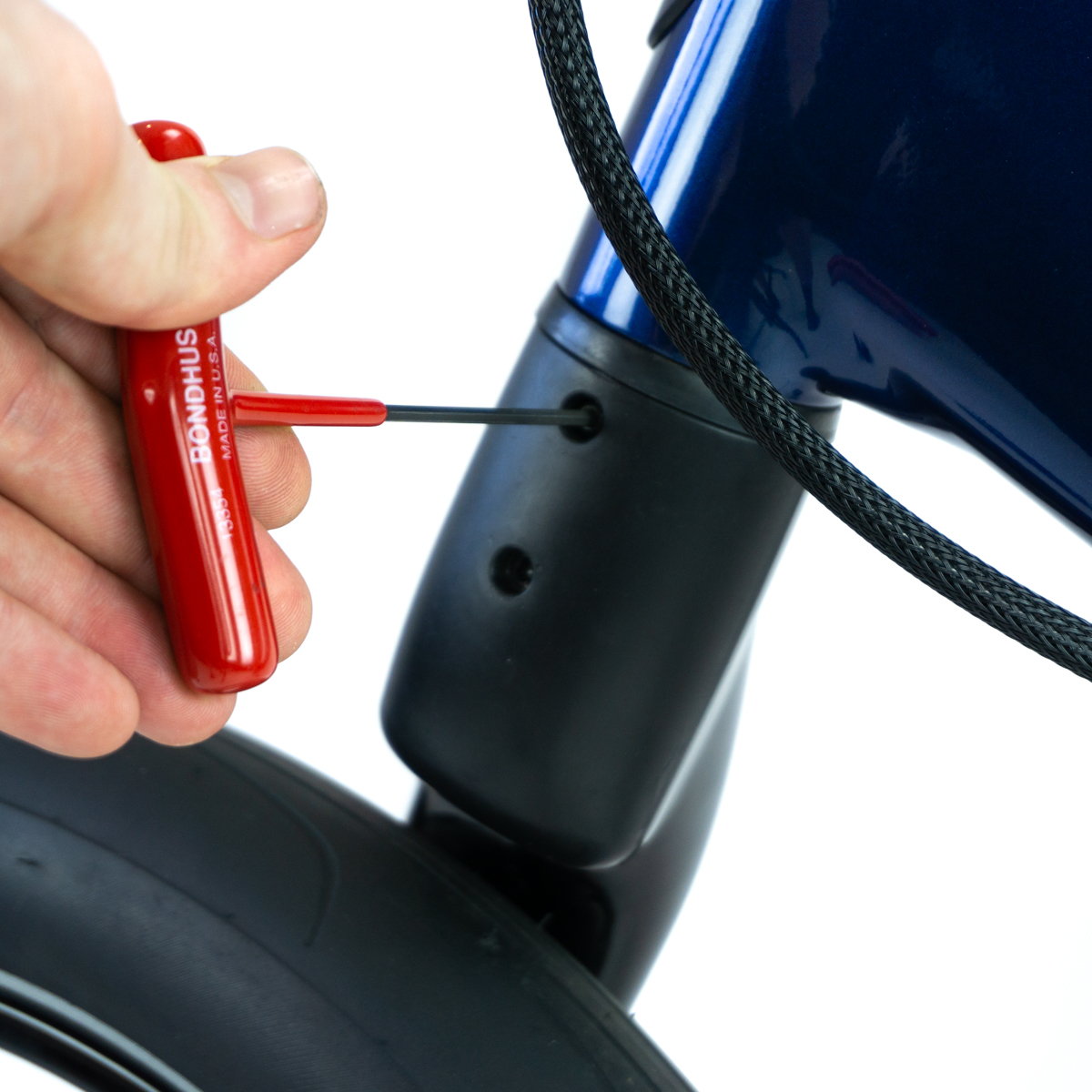

| . Locate and remove the two screws from the fork clamp cover using a 3mm hex key | |
|

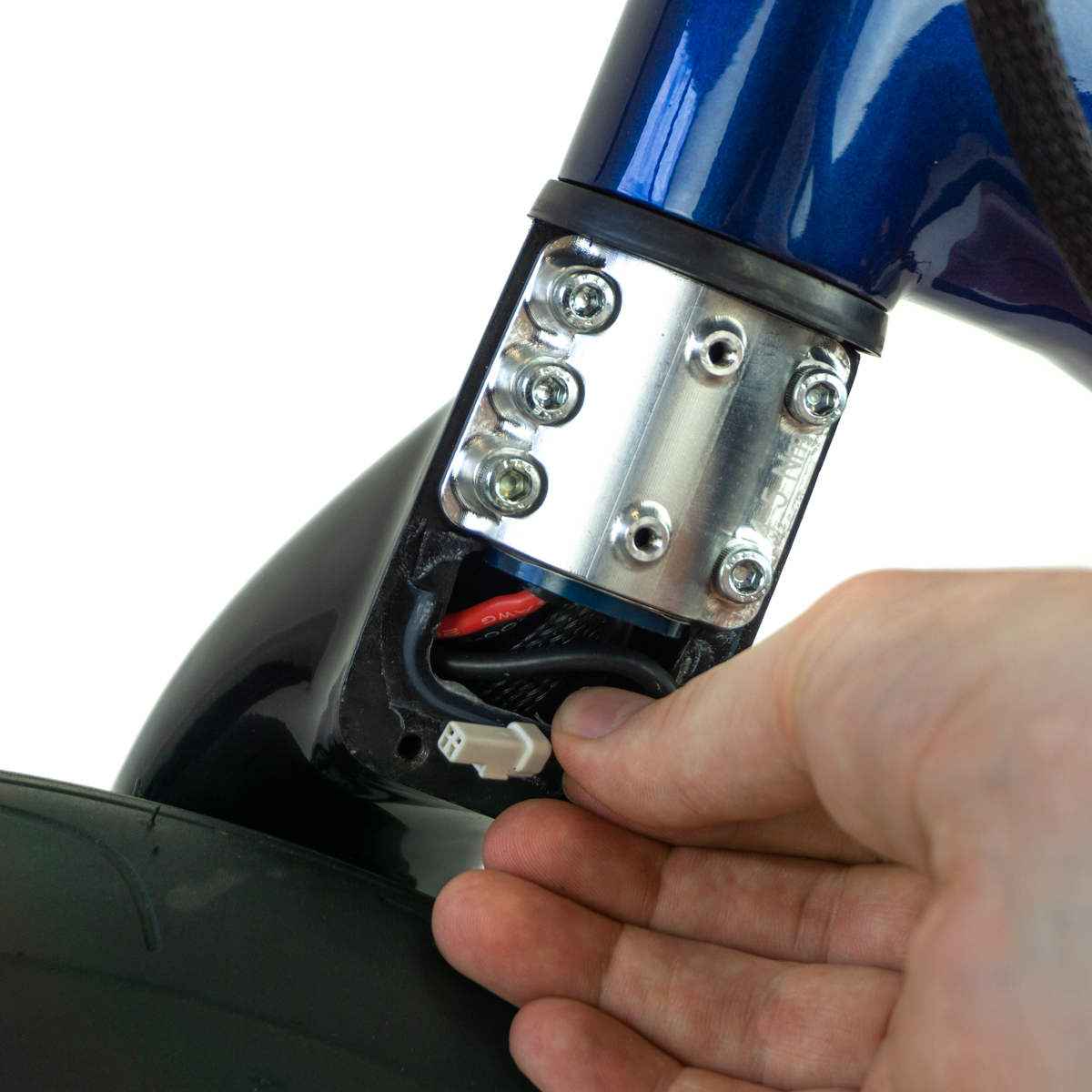

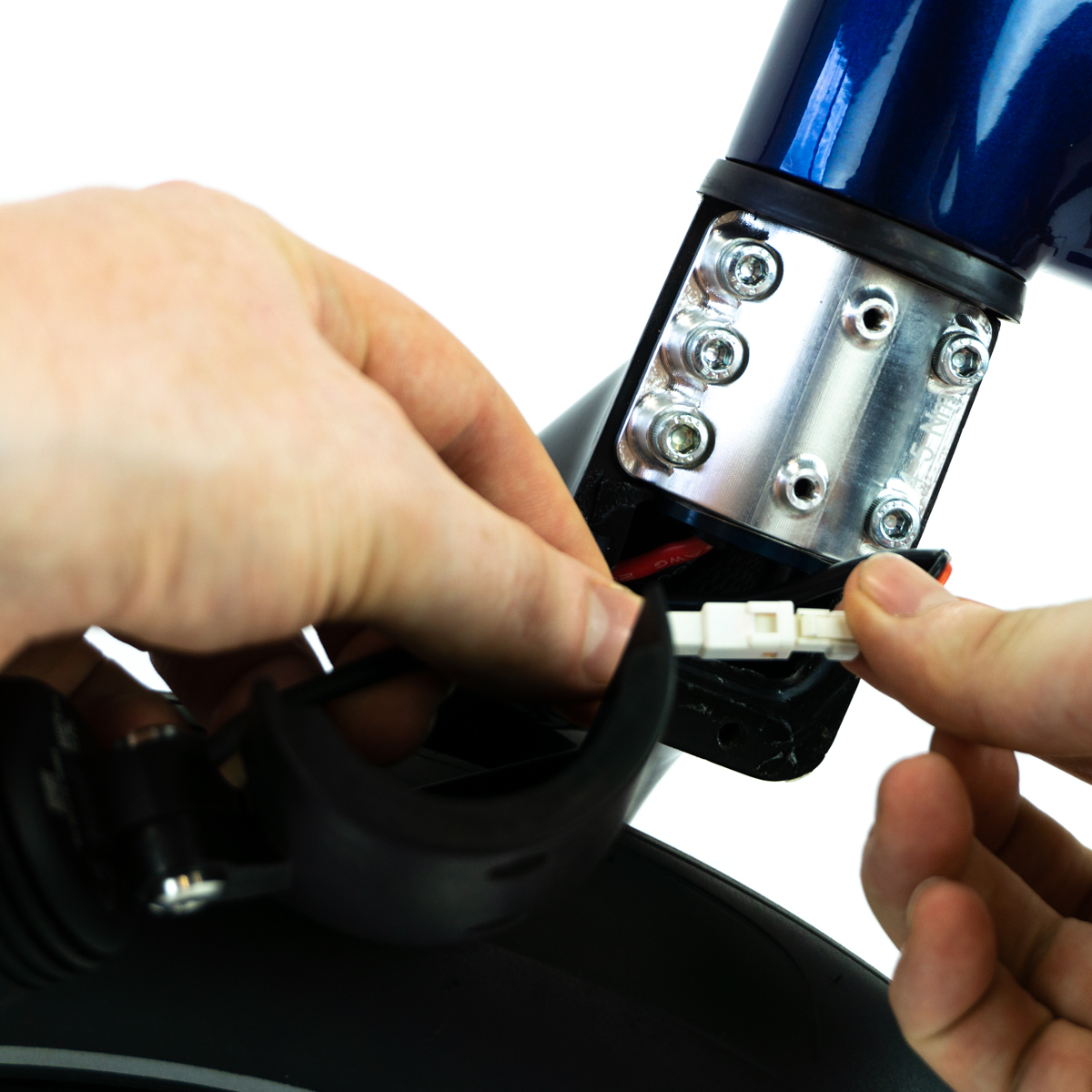

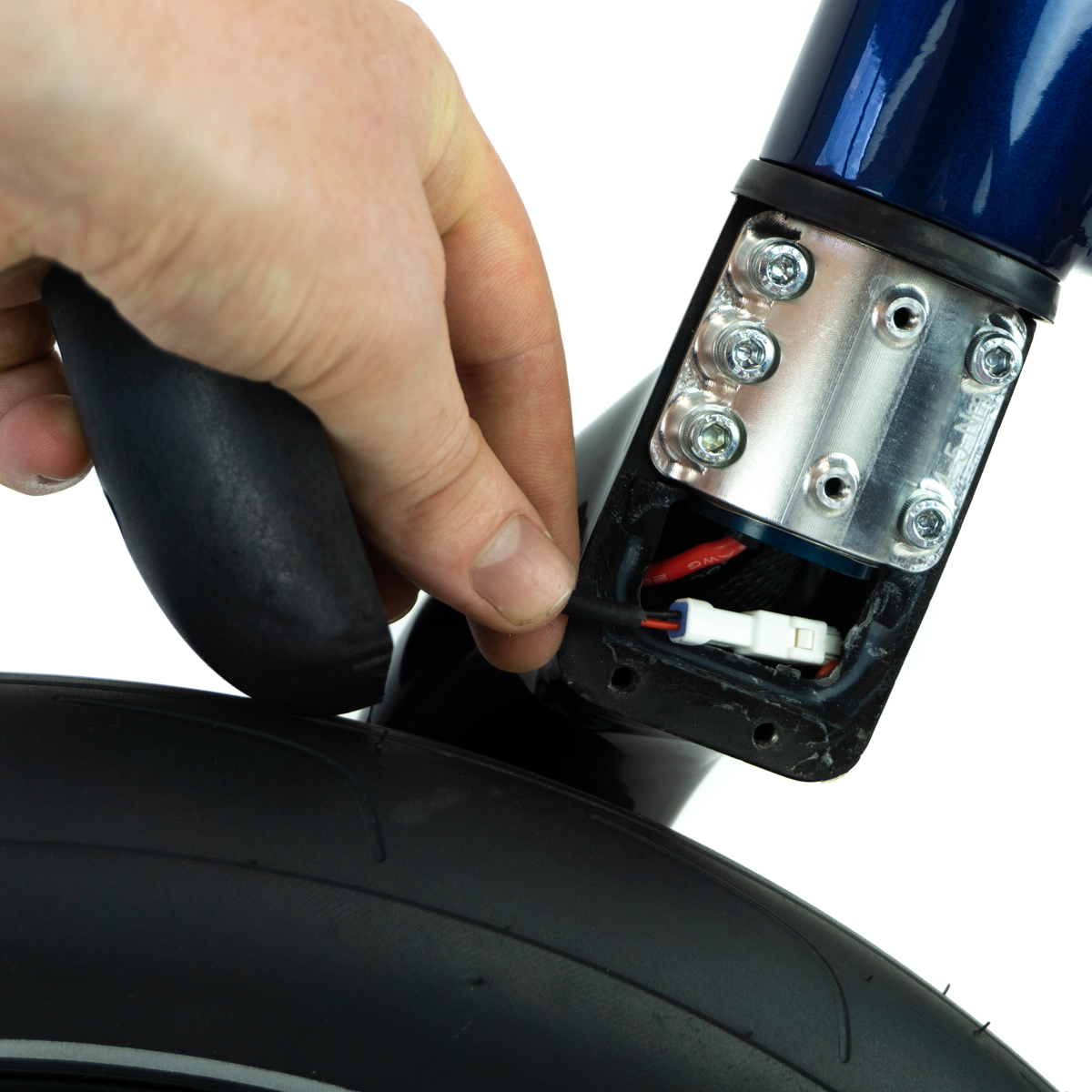

2. Remove the front light connector from the fork Do not pull hard on the cable |
|

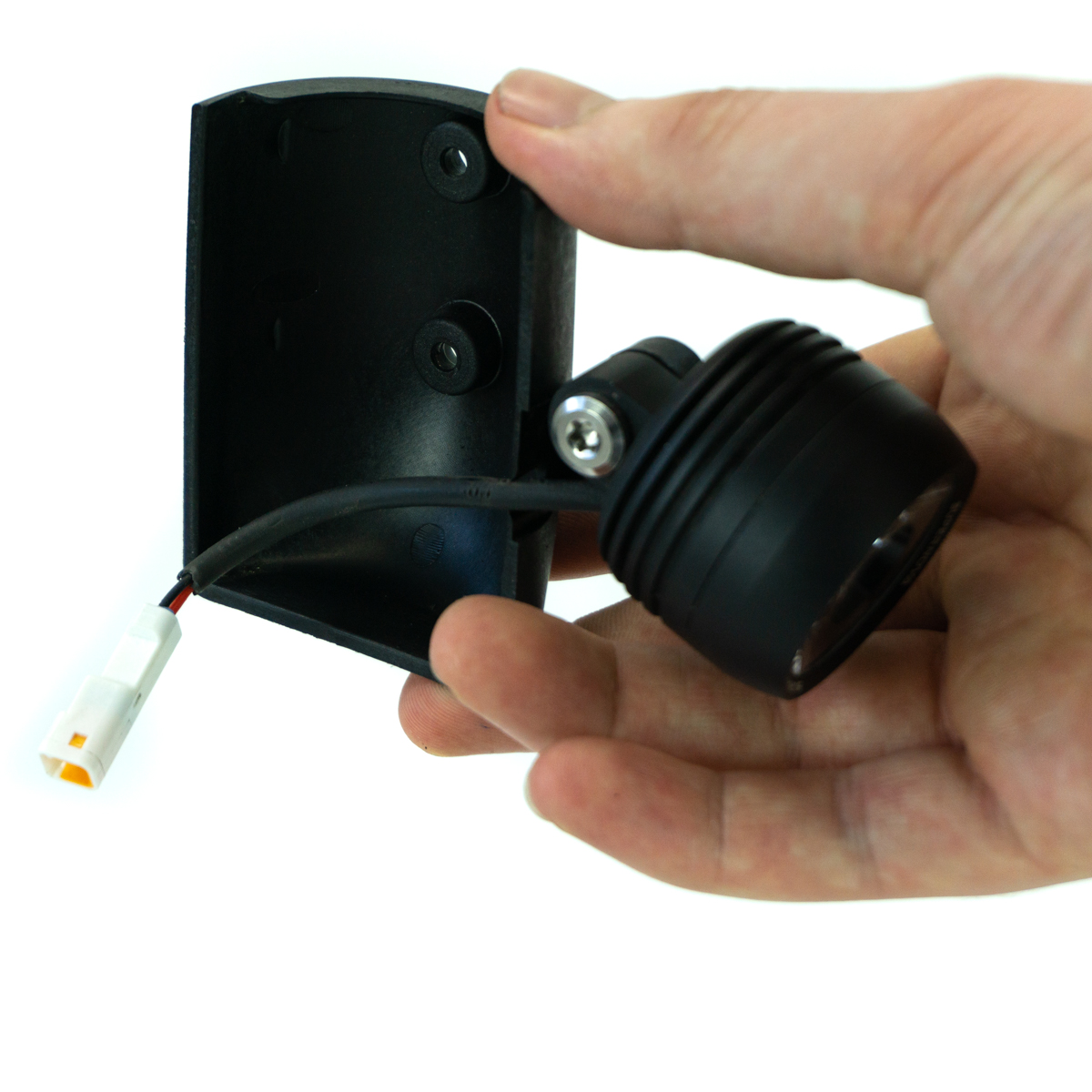

| 3. Plug the front light connector into the front light | |
|

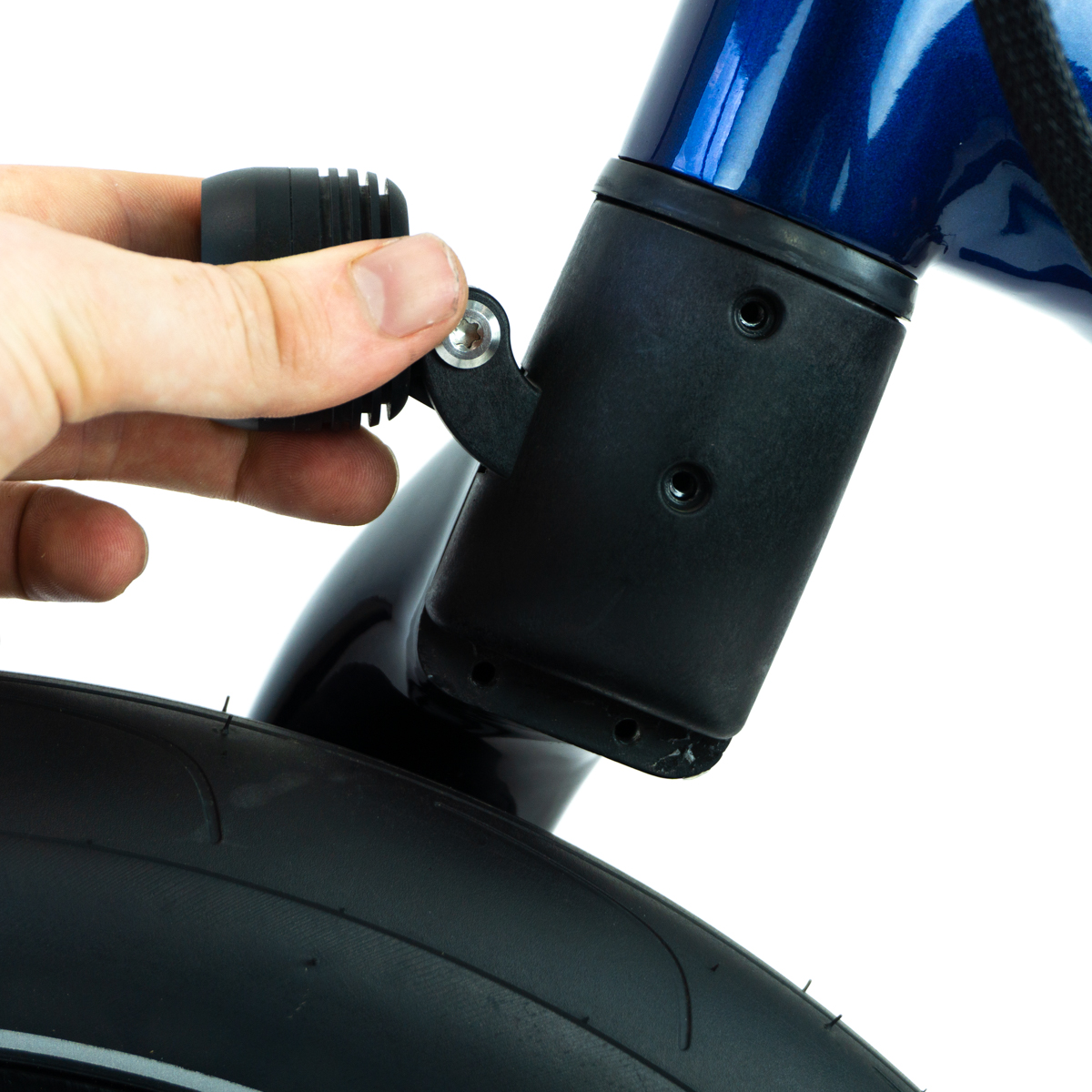

4. Align the front light fork bracket over the fork clamp Ensure the front light cable and connector are not caught behind the bracket |
|

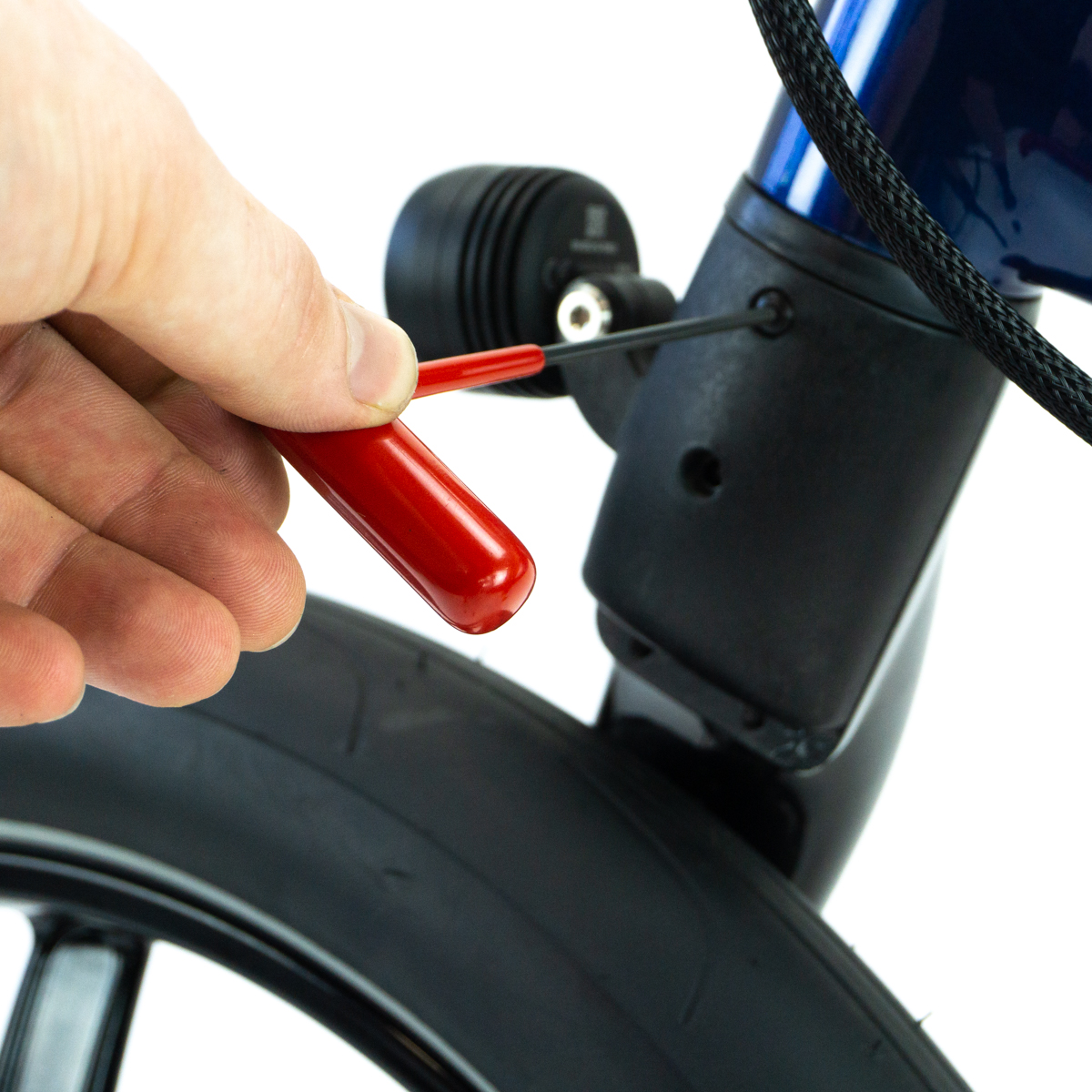

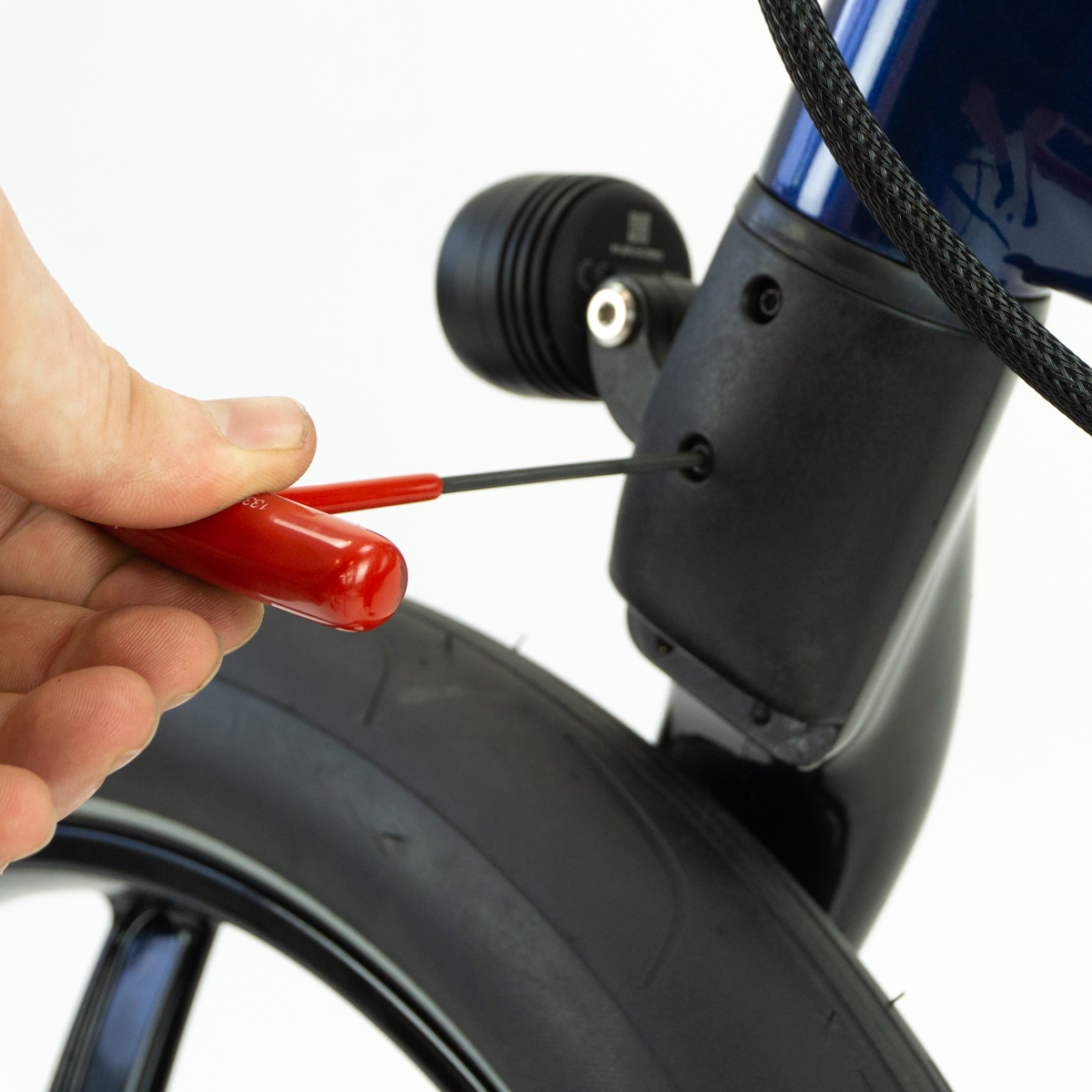

| 5. Tighten the two fork clamp cover screws to 2Nm using a 3mm hex key | |
|
|
|
You can buy a G4 Front Light for your Gocycle at our webstore or via your nearest Gocycle dealer.

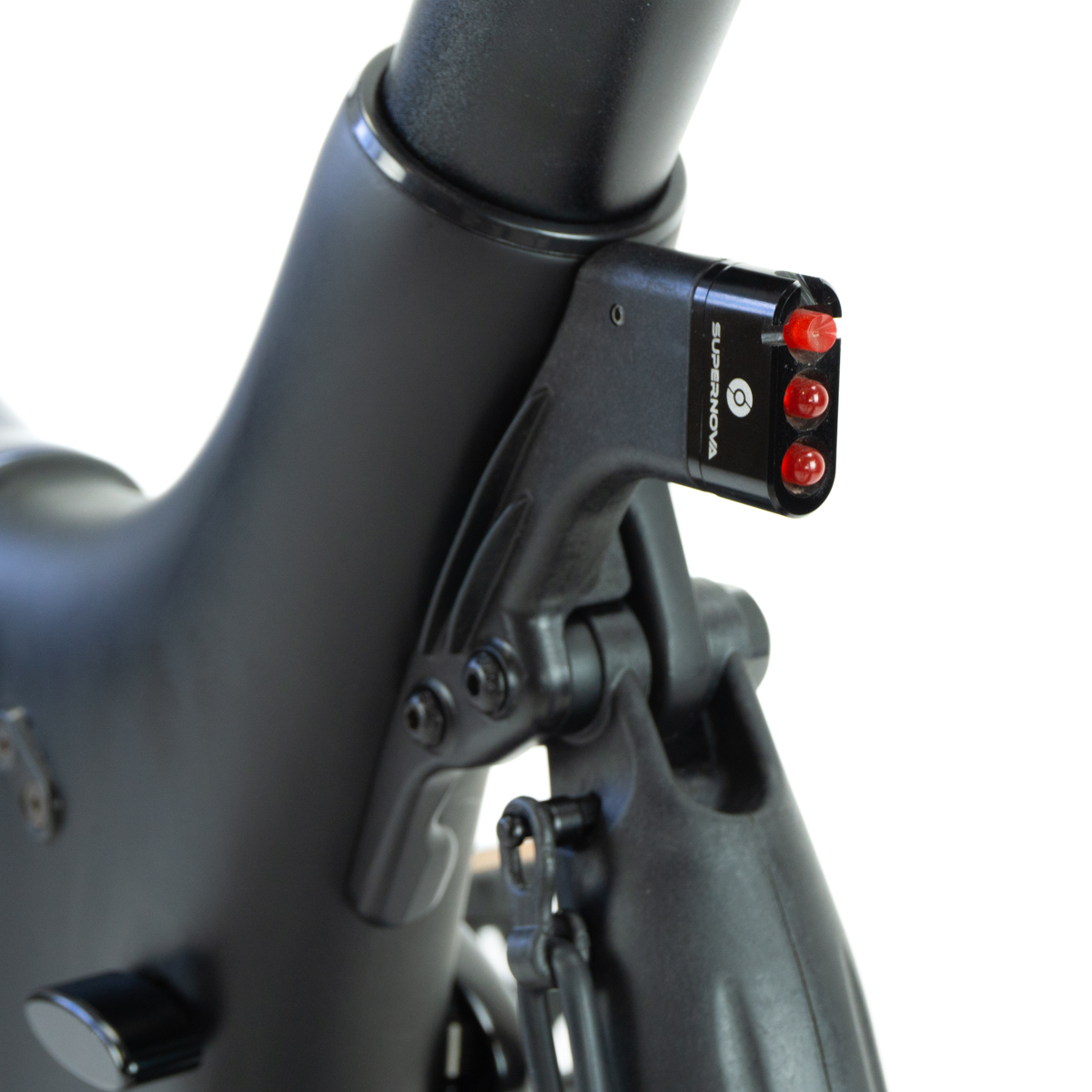

Installing the G4 Rear Light
|
1. Locate and remove the two screws from the rear light cable cover using a 3mm hex key. |
|
|

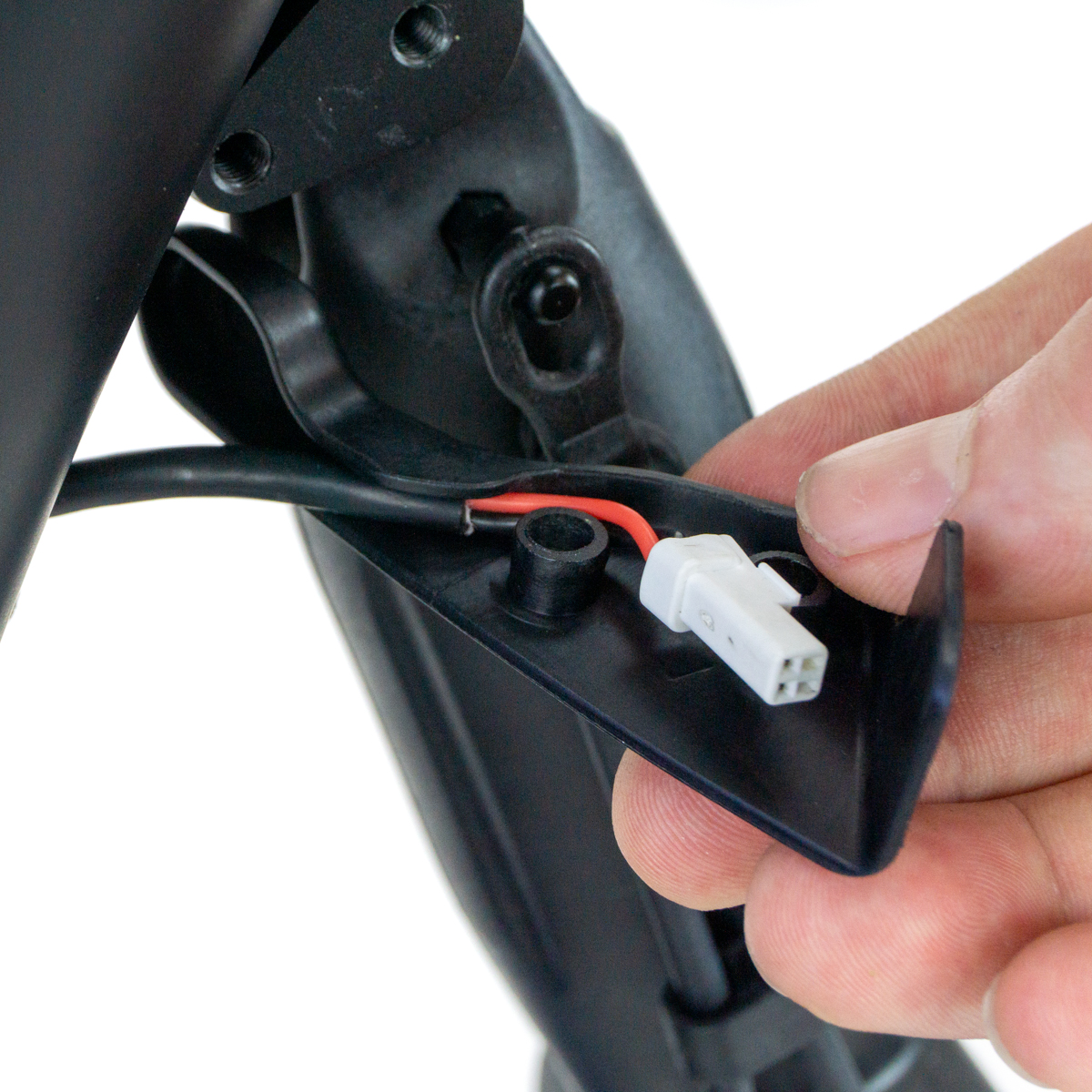

2. Carefully remove the rear light cable cover CAUTION - The rear light cable may be attached to the cover NB. Keep the rear light cable cover in a safe place if you want to remove the light at any point |
|

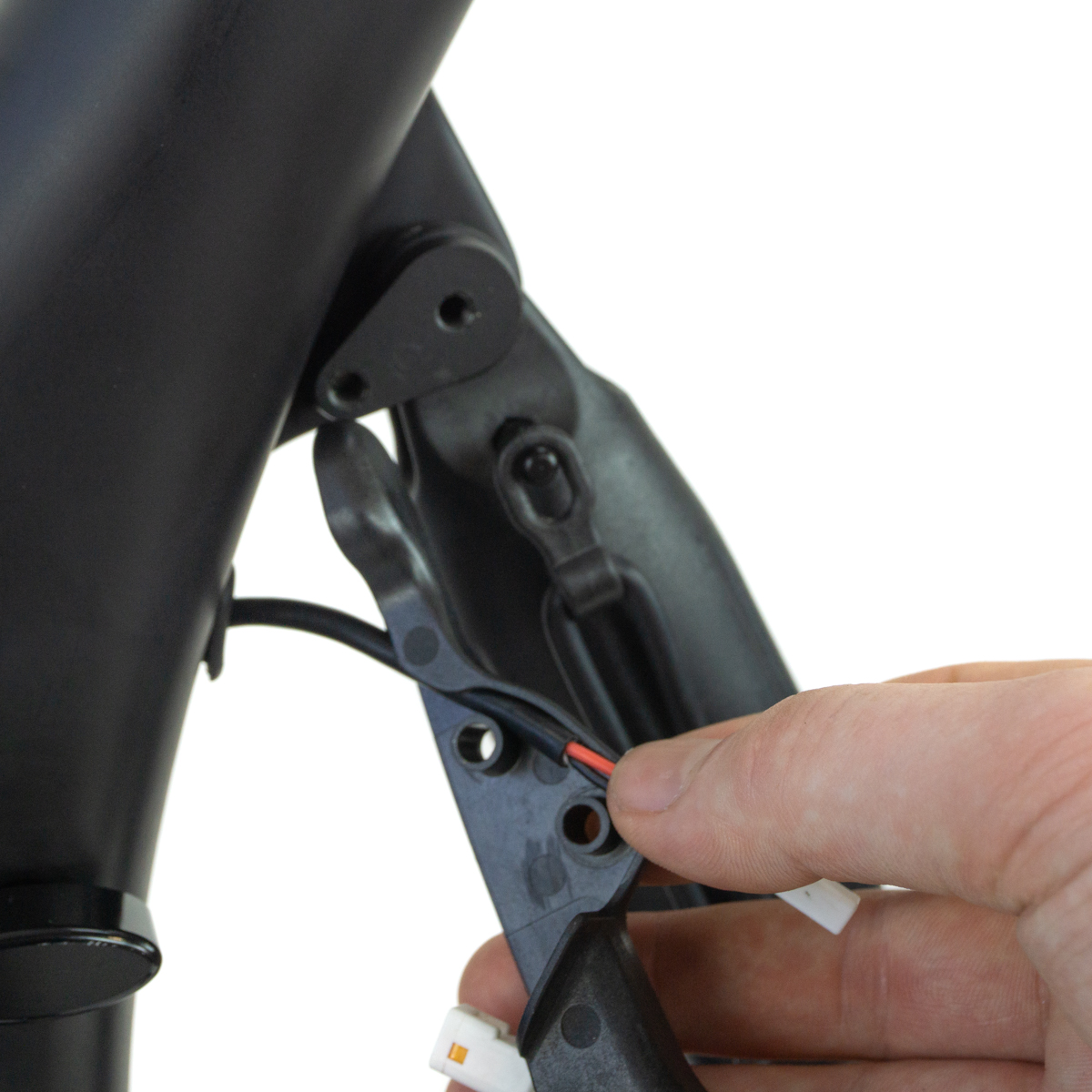

| 3. Run the rear light cable through the rear light bracket | |

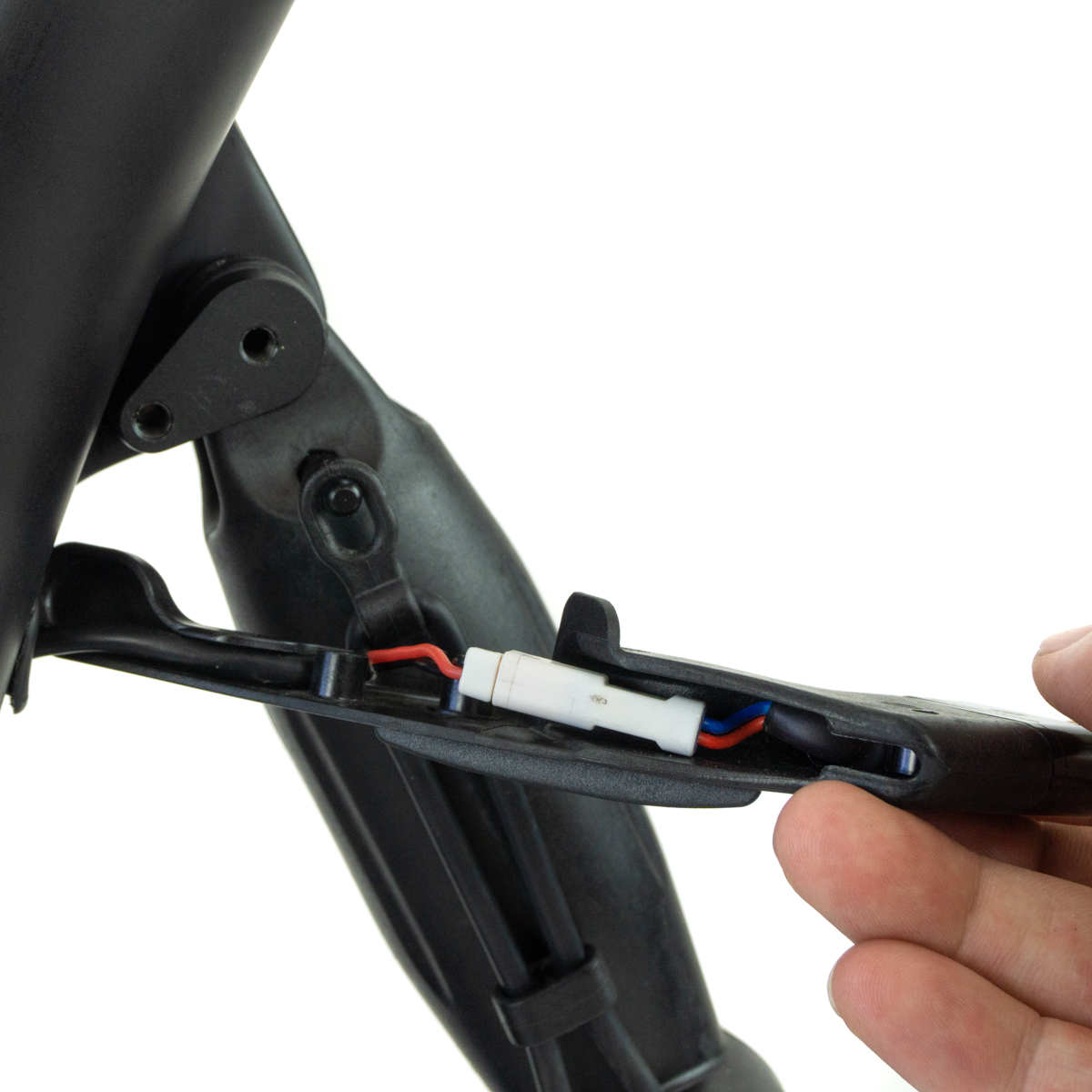

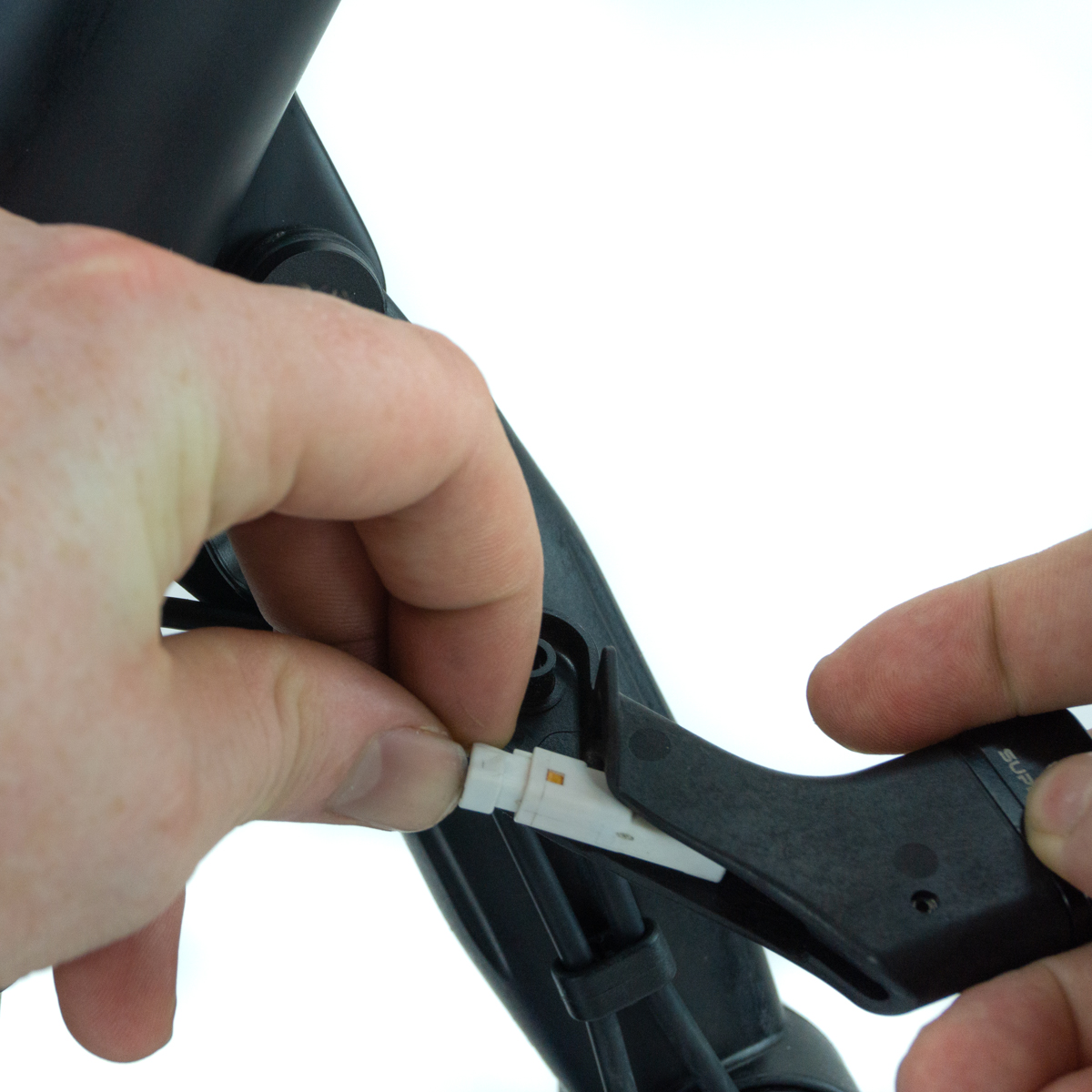

| 4. Plug the rear light cable into the rear light |
|
|

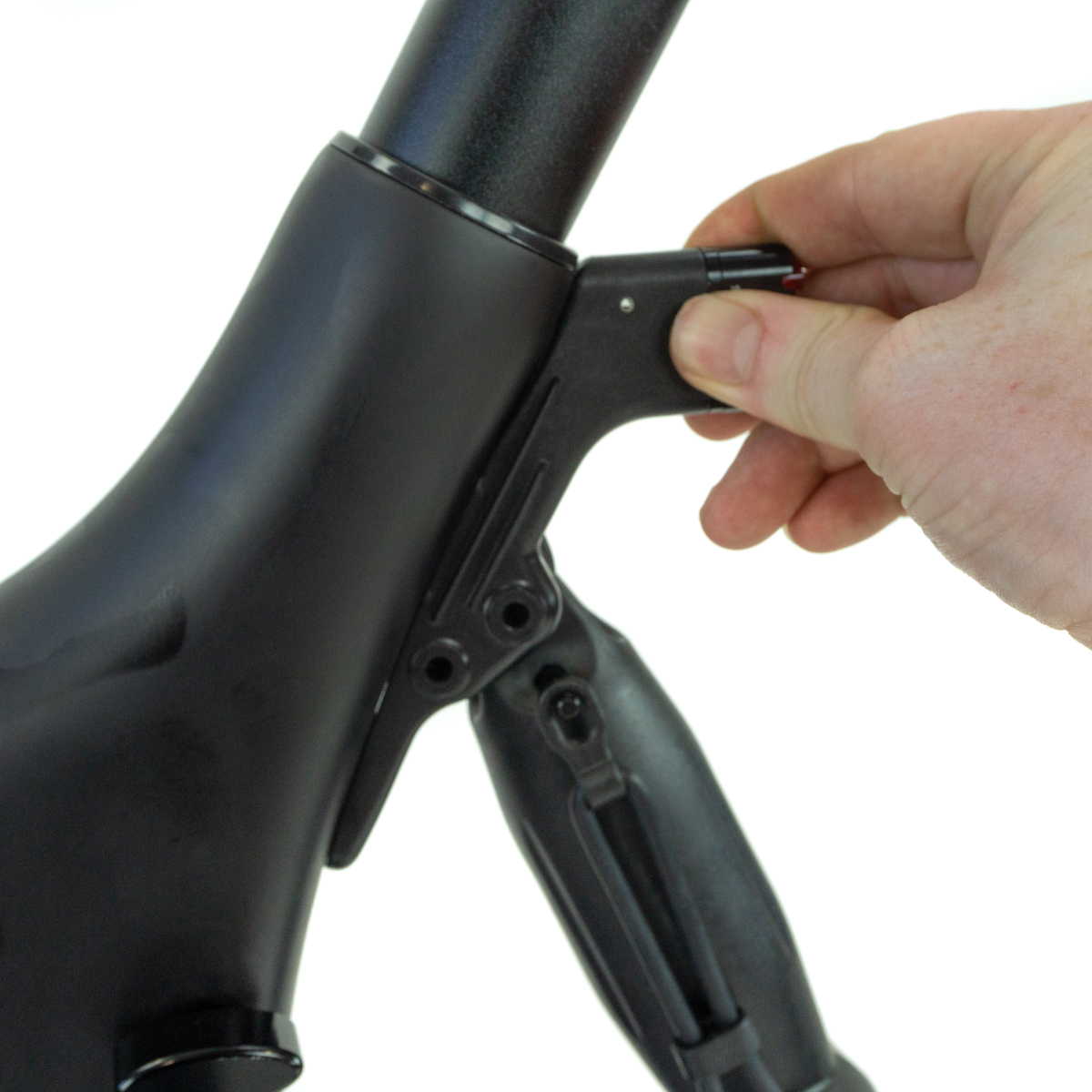

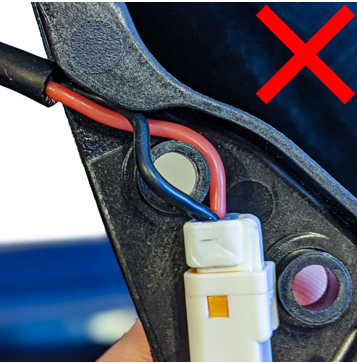

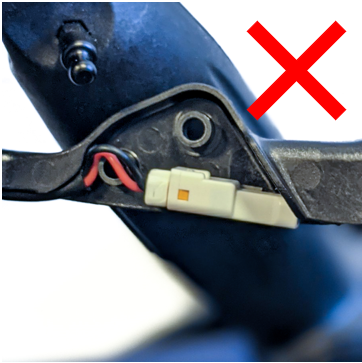

5. Line the holes on the rear light bracket to the screw holes in the shock pin. CAUTION - Ensure the wires are not covering the bolt holes during installation. You may need to push excess wire back into the frame. |
|
|

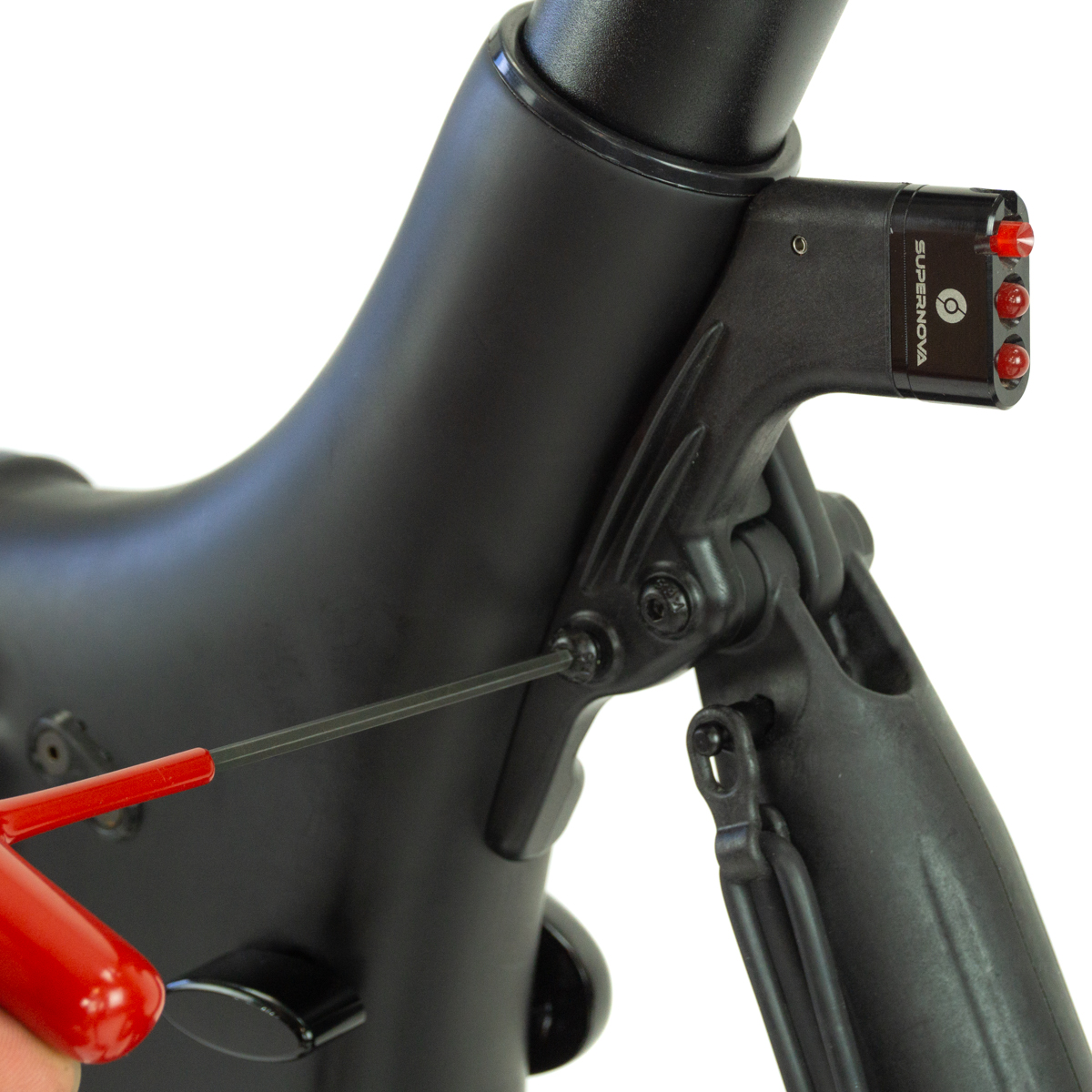

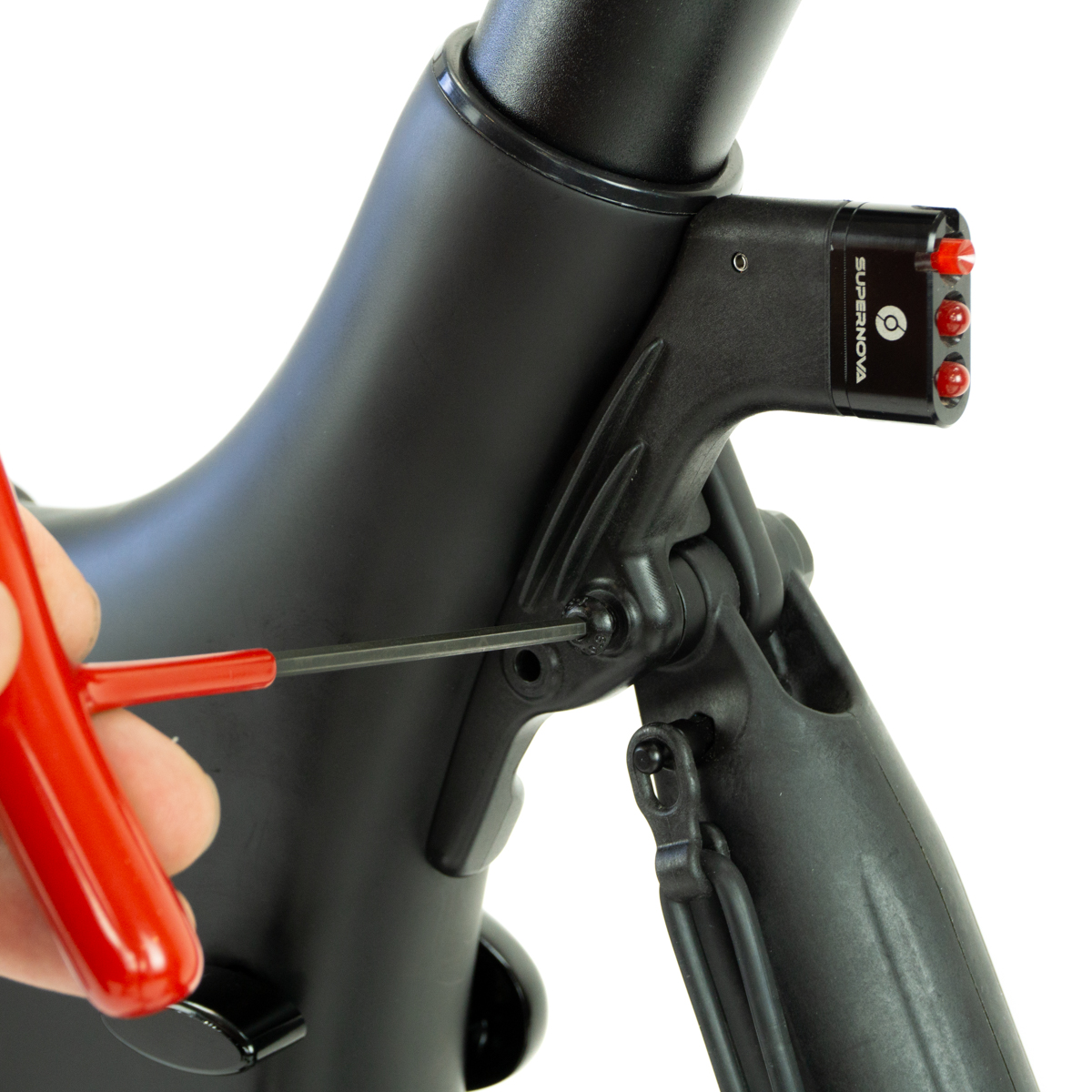

6. Insert and tighten the two rear light bracket screws to 3Nm using a 3mm hex key
NB. Some rear light brackets will only have the hole for one bolt. |
|
You can buy a G4 Rear Light for your Gocycle at our webstore or via your nearest Gocycle dealer.
